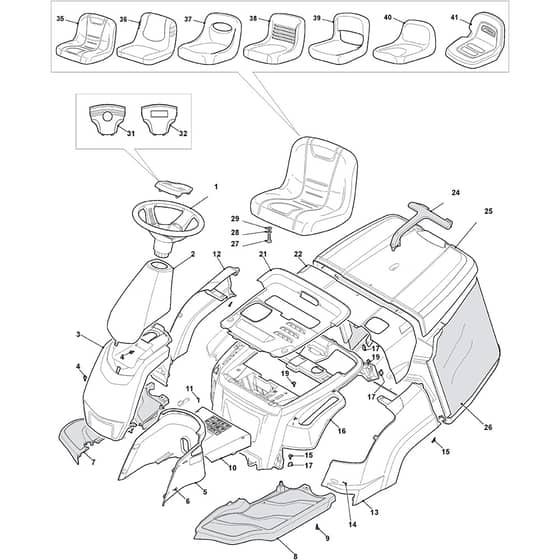

Rider 27 H - 2013-2020 - 2T0075247/AT3 - Atco Ride On Mower Body Diagram

Description

Atco Rider 27 H Parts Diagram

Product Name - Rider 27H

Model Year - 2013-2020

Model Type - MJ 66 E Hydro

Art.N - 2T0075247/AT3

Engine Model - 950 E-Series ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325961220/0 Available to backorder	Steering Wheel	£52.08 £43.40
2	MO327110487/0 Available to backorder	Upper Steering Cover. Black	£26.33 £21.94
3	MO327110528/0 Available to backorder	Front Steering Cover. Green Dark Green	£32.38 £26.98
5	MO327110522/0 Available to backorder	Rear Steering Column Cover. Black	£25.48 £21.23
7	MO327500501/0 Available to backorder	Right Footboard	£33.79 £28.16
8	MO327500500/0 Available to backorder	Left Footboard	£39.42 £32.85
9	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
10	MO327110568/0 Available to backorder	Central Cover. Black From 01-9-2014	£18.16 £15.13

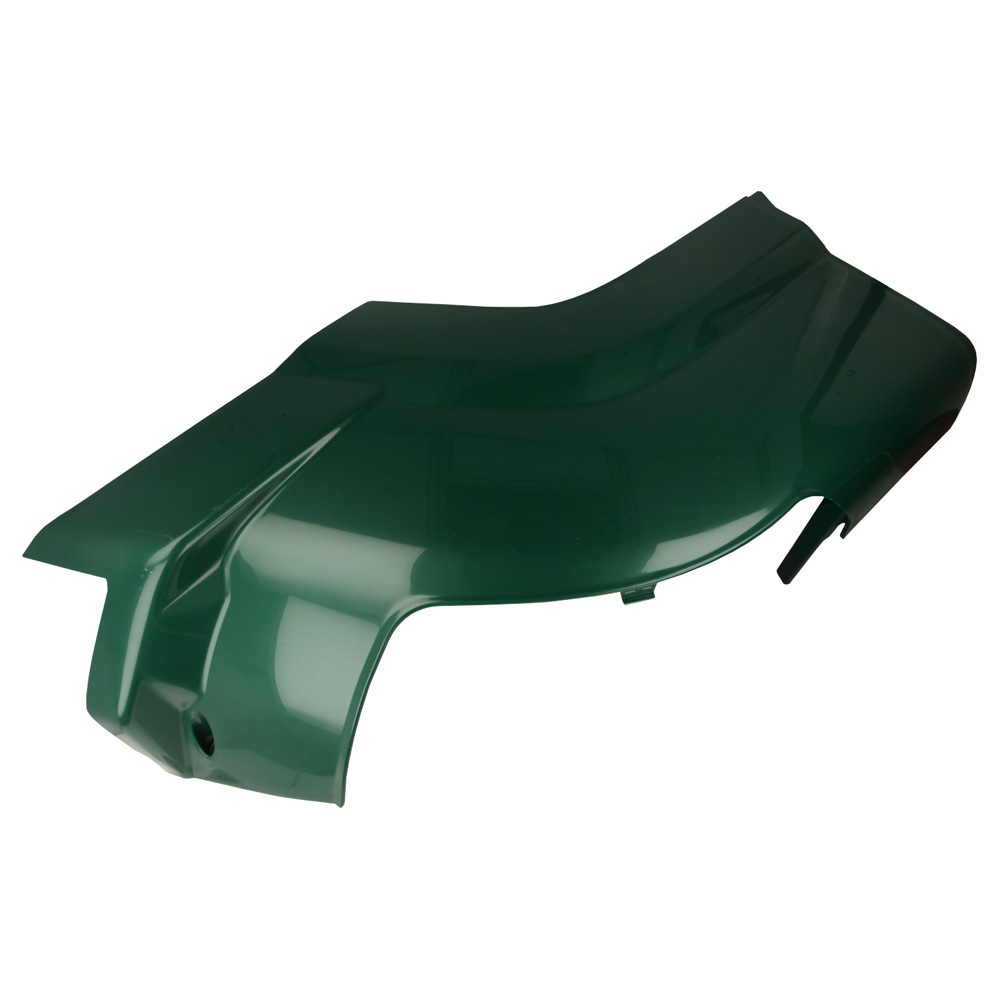

12	MO327110529/0 Available to backorder	Right Rear Wheel Cover. Green Dark Green	£33.79 £28.16
13	MO327110530/0 Available to backorder	Left Wheels Cover. Green Dark Green	£26.60 £22.17
14	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
15	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
16	MO327110521/1 Available to backorder	Frame Cover Black From 01-9-2013	£81.66 £68.05
17	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
19	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
21	MO327110481/0 Available to backorder	Engine Cover Black To 31-8-2013	£36.59 £30.49
21	MO327110481/1 Available to backorder	Engine Cover Black From 01-9-2013	£29.28 £24.40
22	MO327110532/0 Available to backorder	Rear Cover. Green Dark Green	£33.79 £28.16
24	MO327394004/0 Available to backorder	Handle. Black	£12.82 £10.68
25	MO327110531/0 Available to backorder	Grass-Catcher Cover. Green Dark Green	£58.56 £48.80
26	MO184106074/0 Available to backorder	Box. Fabric	£91.51 £76.26
27	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
28	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO325580503/0 Available to backorder	Steering Plate Cover	£6.05 £5.04
38	MO125722471/0 In stock	Seat [Mountfield]	£190.04 £158.37
