Toro Recycler S55AWST 55cm - 21774 (400000000 - 410999999) Handle

Name: Toro Recycler S55AWST 55cm - 21774 (400000000 - 410999999) Handle
SKU: recycler_s55awst_55cm_21774_441999999_handle-group
Price: 0.36 GBP
Availability: InStock

Part No. recycler_s55awst_55cm_21774_441999999_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Recycler S55AWST 55cm - 21774 (400000000 - 410999999) Handle

Description

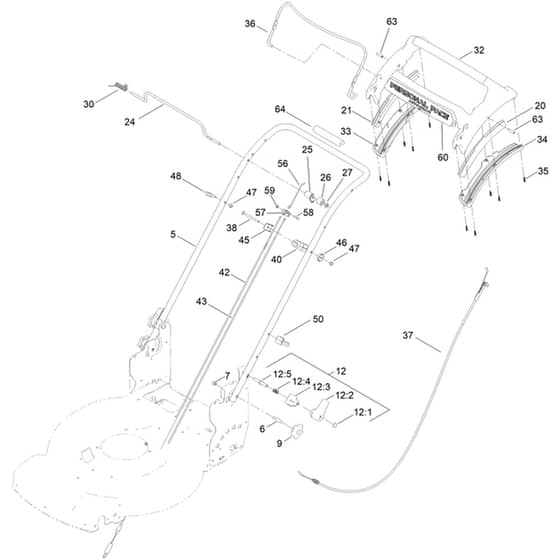

Toro Recycler S55AWST 55cm - 21774 (400000000 - 410999999) Handle Parts Diagram

	Part No.	Details
5	HA144-0227-05 Available to backorder	All Wheel Drive (Awd) Curved Handle	£61.86 £51.55
6	HA139-6588 Available to backorder	Handle Shoulder Bolt	£1.97 £1.64
7	HA119-4038 In stock	Hex Nut	£0.56 £0.47
9	HA117-5976 In stock	Handle Knob	£3.32 £2.77
12	HA140-4157 Available to backorder	[12.1] 5.16 Push Nut	£1.84 £1.53
12	HA138-3249 Available to backorder	[12.3] Spring Anchor	£13.61 £11.34
12	HA115-2858 Available to backorder	[12.4] Compression Spring	£4.08 £3.40
12	HA140-4158 Available to backorder	[12.5] Rod-Release	£1.46 £1.22
20	HA140-2367 Available to backorder	Left Hand (Lh) Curved Guide	£6.56 £5.47
21	HA140-2366 Available to backorder	Right Hand Curved Guide	£6.56 £5.47
24	HA139-5464 Available to backorder	Traction Control Rod	£8.65 £7.21
25	HA140-2378 Available to backorder	All Wheel Drive (Awd) Traction Lever	£4.94 £4.12
26	HA144-0219 Available to backorder	Traction Lever Spacer	£3.83 £3.19
27	HA120-9683 Available to backorder	Washer-Plain [Typ A Nar. 5.16. Stl. Cz]	£0.43 £0.36
30	HA140-4194 Available to backorder	Torsion Spring	£1.97 £1.64
32	HA139-6569 Available to backorder	Curved Handle (Personal Pace)	£38.36 £31.97
33	HA139-6567 Available to backorder	Right Hand Bottom Handle	£4.45 £3.71
34	HA139-6568 Available to backorder	Left Hand (Lh) Bottom Handle	£4.45 £3.71
35	HA94-4496 Available to backorder	Phillips Pan Head (Pph) Screw	£1.09 £0.91
36	HA145-5879-03 Available to backorder	Brake Bail	£17.32 £14.43
37	HA139-6594 In stock	Brake Cable	£17.44 £14.53
38	HA144-0222 Available to backorder	Carriage Screw	£1.60 £1.33
40	HA139-6582 Available to backorder	All Wheel Drive (Awd) Cable Anchor	£5.20 £4.33
42	HA140-2391 In stock	All Wheel Drive (Awd) Front Traction Cable	£17.44 £14.53
43	HA140-2392 Available to backorder	All Wheel Drive (Awd) Rear Traction Cable	£16.82 £14.02
45	HA136-5922 Available to backorder	Cable Clamp	£4.32 £3.60
46	HA136-9075 Available to backorder	Curved Washer	£1.66 £1.38
47	HA137-3094 Available to backorder	Hex Nut	£0.48 £0.40
48	HA86-9671 In stock	Starter Rope And Guide	Was £4.94 £4.12 Special Price £3.48 £2.90
50	HA114-7988 Available to backorder	Cable Guide	£3.20 £2.67
56	HA140-2379 Available to backorder	Equalizer Linkage	£2.46 £2.05
57	HA144-0213 Available to backorder	Cable Yoke	£4.08 £3.40
58	HA144-0212 Available to backorder	Equalizer Bolt	£0.85 £0.71
59	HA137-3085 Available to backorder	Hex Nut	£0.48 £0.40
60	HA145-1459 Available to backorder	Decal - Handle	£13.61 £11.34
63	HA139-6577 Available to backorder	Handle Pin	£1.09 £0.91
64	HA131-4551 Available to backorder	Cover Handle	£1.72 £1.43
