Toro Recycler S55AWST 55cm - 21774 (418320717 - 999999999) Rear Wheel and Height-of-Cut

Name: Toro Recycler S55AWST 55cm - 21774 (418320717 - 999999999) Rear Wheel and Height-of-Cut
SKU: recycler_s55awst_55cm_21774_41832717999999999_rear_wheelheight_o
Price: 0.2 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Recycler S55AWST 55cm - 21774 (418320717 - 999999999) Rear Wheel and Height-of-Cut

Description

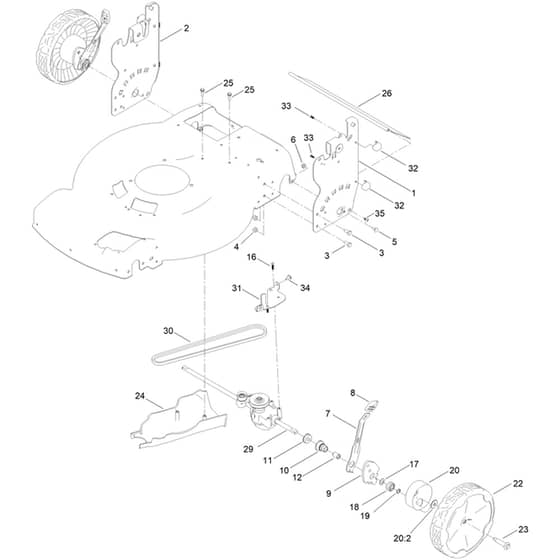

Toro Recycler S55AWST 55cm - 21774 (418320717 - 999999999) Rear Wheel and Height-of-Cut Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA144-6477-05 Available to backorder	Plate-Hoc. Lh [Blk-Txt]	£27.50 £22.92
2	HA139-6592-05 Available to backorder	Right Hand (Rh) Height Of Cut (Hoc) Plate (2 Hole)	£27.50 £22.92
3	HA137-3052 Available to backorder	Hex Head (Hh) Screw	£0.55 £0.46
4	HA119-4038 In stock	Hex Nut	£0.58 £0.48
5	HA100-1445 Available to backorder	Carriage Bolt	£0.55 £0.46
6	HA139-1724 Available to backorder	Lock Nut	£0.55 £0.46
7	HA132-4486 Available to backorder	Spring Arm	£16.74 £13.95
8	HA105-3042 Available to backorder	Height Of Cut (Hoc) Lever Knob	£4.78 £3.98
9	HA139-5451 Available to backorder	Rear Pivot Arm	£14.34 £11.95
10	HA108-9779 Available to backorder	Height Of Cut (Hoc) Retainer Bushing	£15.54 £12.95
11	HA104-8699 Available to backorder	Ball Bearing	£5.26 £4.38
12	HA108-9782 Available to backorder	Sleeve Bushing	£3.94 £3.28
17	HA110-7191 Available to backorder	Thrust Washer	£2.82 £2.35
18	HA131-5399 Available to backorder	Pinion Gear	£5.74 £4.78
19	HA32151-61 Available to backorder	Retaining Ring	£2.86 £2.38
20	HA614426 Available to backorder	[20.2] Stepped Washer	£3.86 £3.22
20	HA140-2362 Available to backorder	Gear Cover Assembly	£4.66 £3.88
22	HA140-2350 Available to backorder	9.65 Inch External Geared Wheel	£38.60 £32.17
23	HA614650 Available to backorder	Shoulder Bolt	£4.78 £3.98
24	HA130-6709 Available to backorder	Rear Belt Cover	£17.94 £14.95
25	HA137-3099 In stock	Hex Washer Head Plastite Screw	Was £1.13 £0.94 Special Price £0.60 £0.50
26	HA145-5821 Available to backorder	Trailing Shield	£25.72 £21.43
29	HA140-2370 Available to backorder	All Wheel Drive (Awd) Transmission	£134.00 £111.67
30	HA140-2380 Available to backorder	Transmission V-Belt For Commercial Walk Behind Mower	£22.72 £18.93
31	HA140-2371-03 Available to backorder	All Wheel Drive (Awd) Belt Guide	£7.40 £6.17
32	HA140-2369 Available to backorder	Smart Stow Pad	£1.27 £1.06
33	HA137-9137 Available to backorder	Phillips Pan Head (Pph) Screw	£1.27 £1.06
34	HA139-1700 In stock	Screw-Hwh. Thd Roll	Was £0.84 £0.70 Special Price £0.36 £0.30
35	HA139-1692 In stock	Screw-Pth[#12 X 1.2.Ab Thd.Bz]	Was £0.55 £0.46 Special Price £0.24 £0.20
