Toro Recycler S55AWST 55cm - 21774 (412900000 - 417399999) Handle

Name: Toro Recycler S55AWST 55cm - 21774 (412900000 - 417399999) Handle
SKU: recycler_s55awst_55cm_21774_4129417399999_handle-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Recycler S55AWST 55cm - 21774 (412900000 - 417399999) Handle

Description

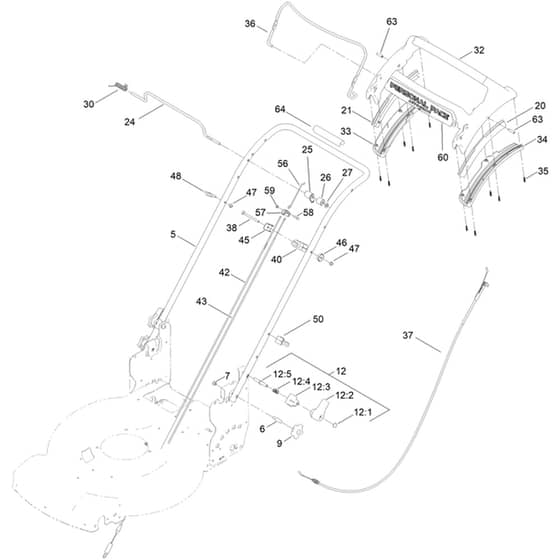

Toro Recycler S55AWST 55cm - 21774 (412900000 - 417399999) Handle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HA144-0227-05 Available to backorder	All Wheel Drive (Awd) Curved Handle	£59.80 £49.83
6	HA139-6588 Available to backorder	Handle Shoulder Bolt	£1.90 £1.58
7	HA119-4038 In stock	Hex Nut	£0.58 £0.48
9	HA117-5976 In stock	Handle Knob	£2.98 £2.48
12	HA140-4157 Available to backorder	[12.1] 5.16 Push Nut	£1.78 £1.48
12	HA138-3249 Available to backorder	[12.3] Spring Anchor	£13.16 £10.97
12	HA115-2858 Available to backorder	[12.4] Compression Spring	£3.94 £3.28
12	HA140-4158 Available to backorder	[12.5] Rod-Release	£1.70 £1.42
20	HA140-2367 Available to backorder	Left Hand (Lh) Curved Guide	£6.34 £5.28
21	HA140-2366 Available to backorder	Right Hand Curved Guide	£6.34 £5.28
24	HA139-5464 Available to backorder	Traction Control Rod	£8.36 £6.97
25	HA140-2378 Available to backorder	All Wheel Drive (Awd) Traction Lever	£4.78 £3.98
26	HA144-0219 Available to backorder	Traction Lever Spacer	£3.70 £3.08
27	HA120-9683 Available to backorder	Washer-Plain [Typ A Nar. 5.16. Stl. Cz]	£0.48 £0.40
30	HA140-4194 Available to backorder	Torsion Spring	£1.90 £1.58
32	HA139-6569 Available to backorder	Curved Handle (Personal Pace)	£37.08 £30.90
33	HA139-6567 Available to backorder	Right Hand Bottom Handle	£4.30 £3.58
34	HA139-6568 Available to backorder	Left Hand (Lh) Bottom Handle	£4.30 £3.58
35	HA94-4496 Available to backorder	Phillips Pan Head (Pph) Screw	£1.27 £1.06
36	HA145-5879-03 Available to backorder	Brake Bail	£16.74 £13.95
37	HA139-6594 Available to backorder	Brake Cable	£16.32 £13.60
38	HA144-0222 Available to backorder	Carriage Screw	£1.54 £1.28
40	HA139-6582 Available to backorder	All Wheel Drive (Awd) Cable Anchor	£5.02 £4.18
42	HA140-2391 Available to backorder	All Wheel Drive (Awd) Front Traction Cable	£19.12 £15.93
43	HA140-2392 Available to backorder	All Wheel Drive (Awd) Rear Traction Cable	£19.12 £15.93
45	HA136-5922 Available to backorder	Cable Clamp	£4.18 £3.48
46	HA136-9075 Available to backorder	Curved Washer	£1.56 £1.30
47	HA137-3094 Available to backorder	Hex Nut	£0.55 £0.46
48	HA86-9671 In stock	Starter Rope And Guide	Was £4.94 £4.12 Special Price £3.48 £2.90
50	HA114-7988 Available to backorder	Cable Guide	£3.10 £2.58
56	HA140-2379 Available to backorder	Equalizer Linkage	£2.38 £1.98
57	HA144-0213 Available to backorder	Cable Yoke	£3.94 £3.28
58	HA144-0212 Available to backorder	Equalizer Bolt	£0.98 £0.82
59	HA137-3085 Available to backorder	Hex Nut	£0.55 £0.46
60	HA145-1459 Available to backorder	Decal - Handle	£13.16 £10.97
63	HA139-6577 Available to backorder	Handle Pin	£1.27 £1.06
64	HA131-4551 Available to backorder	Cover Handle	£1.66 £1.38
