Toro Recycler S55ABC 55cm - 21772 (411999881 - 999999999) Rear Wheel and Height-of-Cut

Description

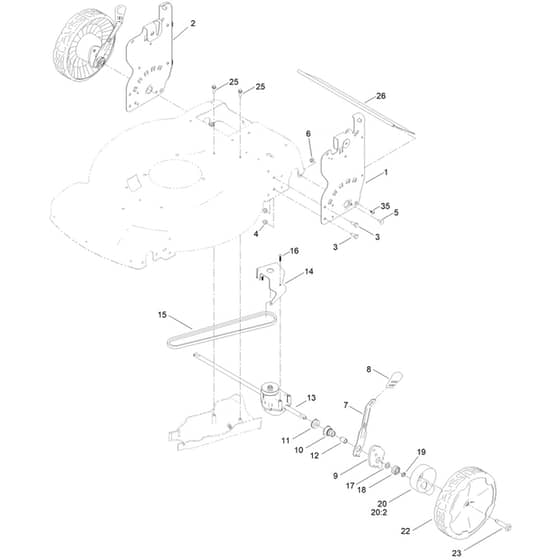

Toro Recycler S55ABC 55cm - 21772 (411999881 - 999999999) Rear Wheel and Height-of-Cut Parts Diagram

	Part No.	Details
1	HA145-5651-05 Available to backorder	Left Hand (Lh) Height Of Cut (Hoc) Plate	£33.41 £27.84
2	HA145-5650-05 Available to backorder	Right Hand Height Of Cut (Hoc) Plate	£33.41 £27.84
3	HA137-3052 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
4	HA119-4038 In stock	Hex Nut	£0.56 £0.47
5	HA100-1445 Available to backorder	Carriage Bolt	£0.48 £0.40
6	HA139-1724 Available to backorder	Lock Nut	£0.48 £0.40
7	HA132-4486 Available to backorder	Spring Arm	£17.32 £14.43
8	HA110-0549 In stock	Height Of Cut (Hoc) Knob	£1.27 £1.06
9	HA139-5451 Available to backorder	Rear Pivot Arm	£14.83 £12.36
10	HA108-9779 Available to backorder	Height Of Cut (Hoc) Retainer Bushing	£16.08 £13.40
11	HA104-8699 In stock	Ball Bearing	£5.77 £4.81
12	HA108-9782 Available to backorder	Sleeve Bushing	£4.08 £3.40
13	HA139-6561 Available to backorder	Rear Wheel Drive (Rwd) Transmission	£134.04 £111.70
14	HA114-7977-03 Available to backorder	Transmission Bracket	£16.08 £13.40
15	HA140-4041 In stock	Transmission V-Belt	£18.53 £15.44
17	HA110-7191 Available to backorder	Thrust Washer	£2.98 £2.48
18	HA131-5399 In stock	Pinion Gear	£6.25 £5.21
19	HA32151-61 Available to backorder	Retaining Ring	£3.07 £2.56
20	HA140-2362 Available to backorder	Gear Cover Assembly	£4.82 £4.02
22	HA140-2350 In stock	9.65 Inch External Geared Wheel	£41.59 £34.66
20	HA614426 Available to backorder	[20.2] Stepped Washer	£4.14 £3.45
23	HA161-8231 Available to backorder	Shoulder Bolt	£1.97 £1.64
25	HA137-3099 In stock	Hex Washer Head Plastite Screw	Was £1.13 £0.94 Special Price £0.60 £0.50
26	HA145-5821 In stock	Trailing Shield	£27.56 £22.97
35	HA139-1692 In stock	Screw-Pth[#12 X 1.2.Ab Thd.Bz]	Was £0.55 £0.46 Special Price £0.24 £0.20
