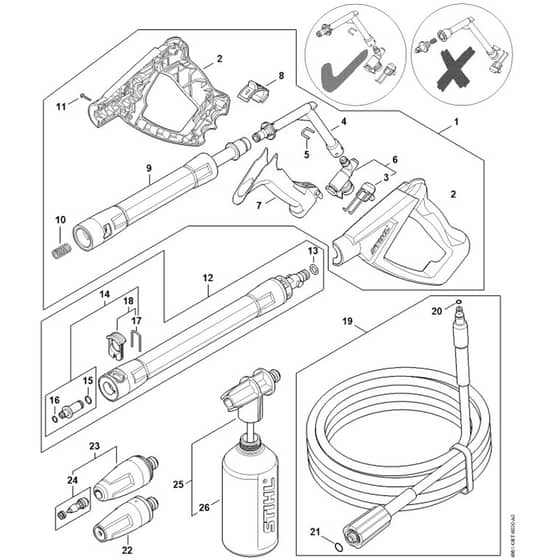

Stihl RE90 - Spray Gun, Spray Lance-Wand 03 - Parts Diagram

Name: Stihl RE90 - Spray Gun, Spray Lance-Wand 03 - Parts Diagram
SKU: re90_spray_gun_spray_lance_wand_03-group
Price: 0.47 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RE90 - Spray Gun, Spray Lance-Wand 03 - Parts Diagram

Description

Stihl RE90 - Spray Gun, Spray Lance-Wand 03 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

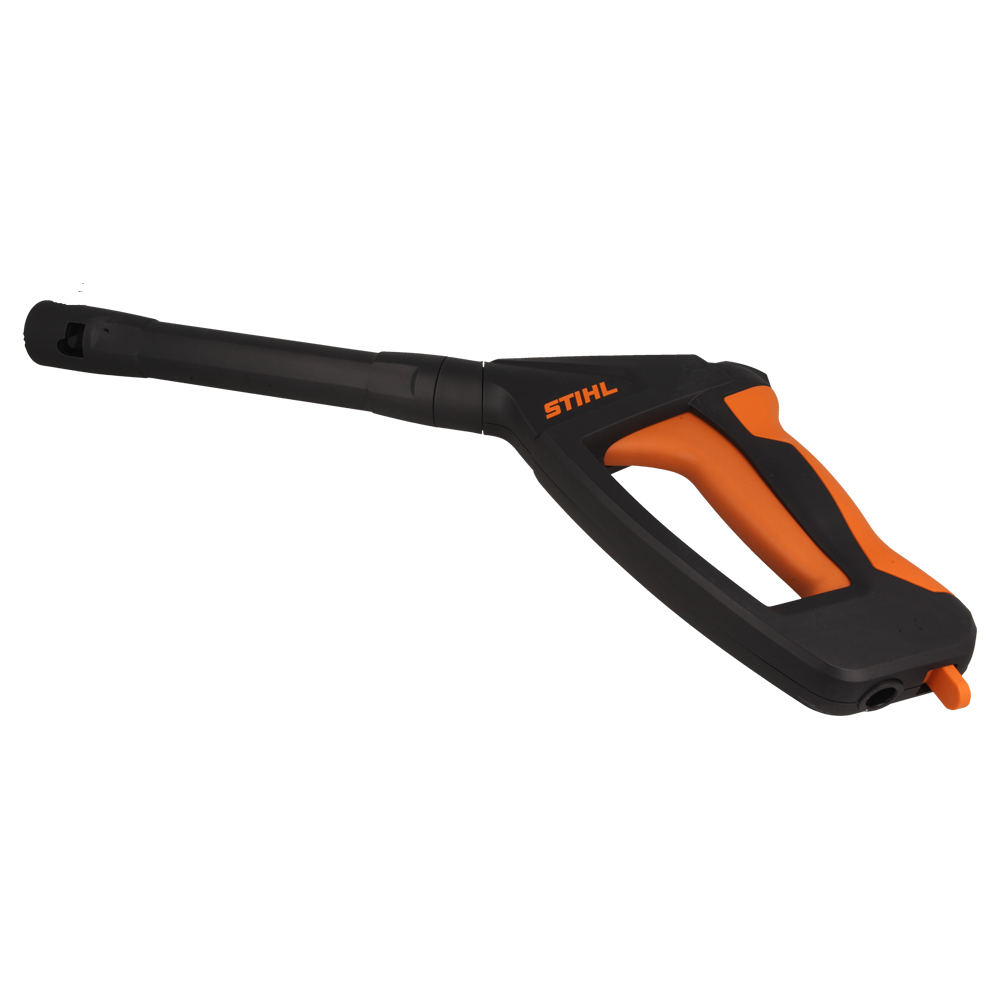

1	ST4930 500 1306 Available to backorder	Spray gun (Contains 2 - 11)	£46.42 £38.68
2	ST4930 500 6609 Available to backorder	Handle	£21.78 £18.15
3	ST4930 530 0300 Available to backorder	Spring button	£4.84 £4.03
4	ST4930 500 2200 Available to backorder	Curved lance	£9.34 £7.78
5	ST4930 505 0900 Available to backorder	Retainer	£1.66 £1.38

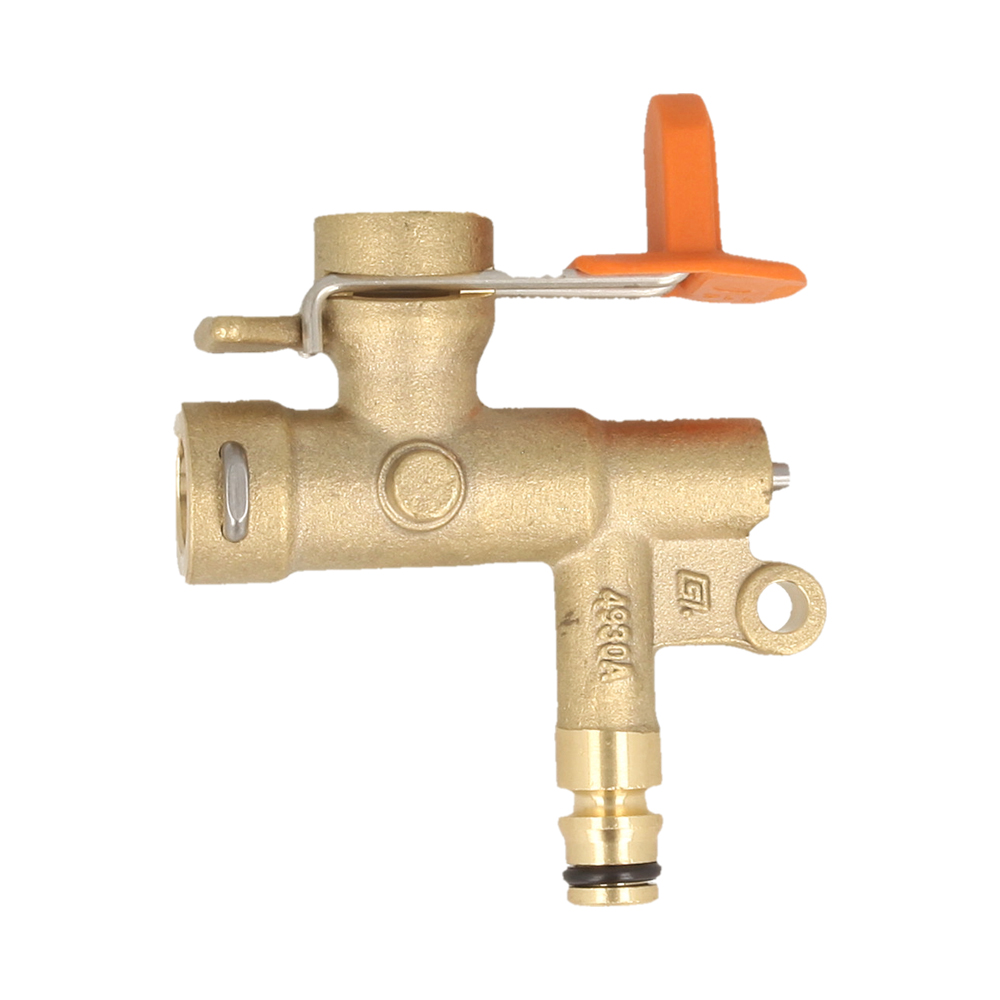

6	ST4930 500 0602 Available to backorder	Valve (Contains 3)	£20.80 £17.33
7	ST4930 500 1501 Available to backorder	Lever	£15.28 £12.73
8	ST4930 502 1600 Available to backorder	Safety catch	£3.86 £3.22
9	ST4930 500 1101 Available to backorder	Spray lance/wand	£11.44 £9.53
10	ST4930 708 0802 Available to backorder	Spring	£1.54 £1.28
12	ST4930 500 0911 Available to backorder	Spray lance/wand (Contains 13 - 18)	£25.08 £20.90

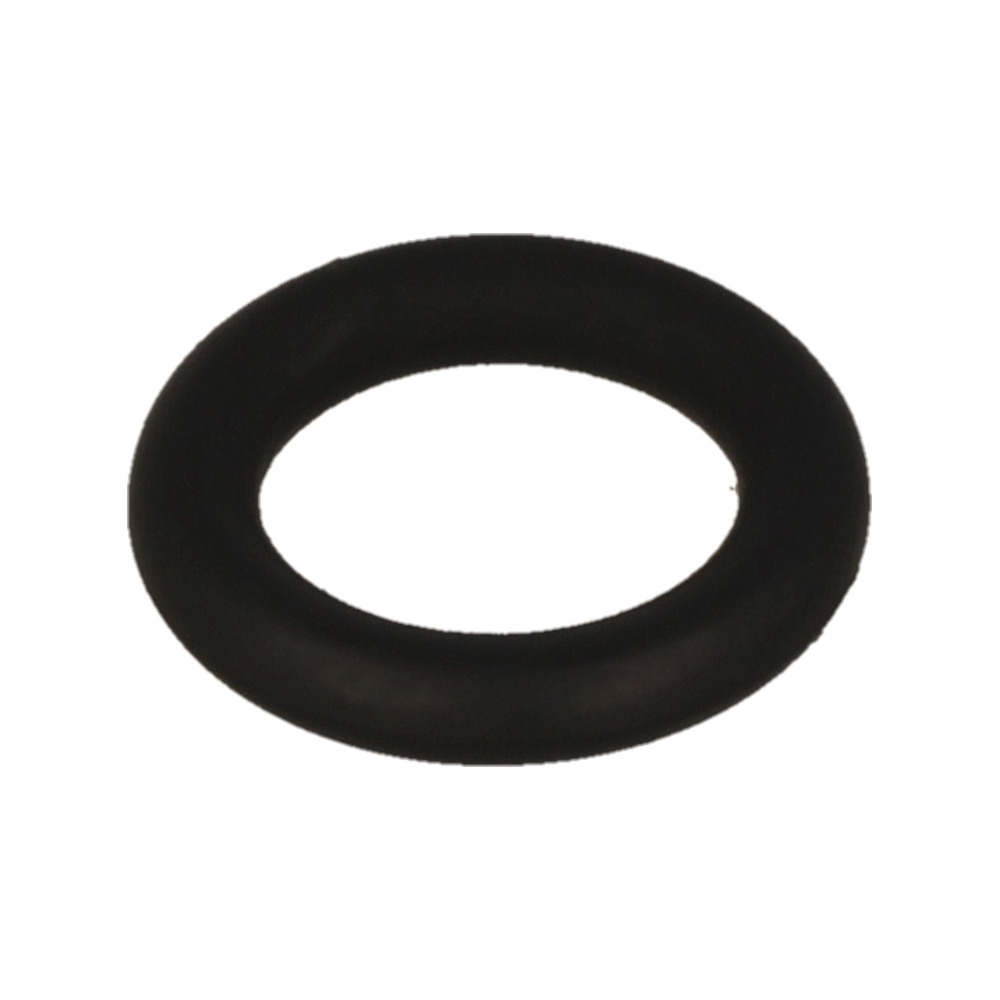

13	ST9645 949 0020 Available to backorder	O-ring N919x262-NBR90	£0.56 £0.47
14	ST4930 500 6300 Available to backorder	Nozzle (Contains 15 - 17)	£10.56 £8.80
18	ST4930 530 0100 Available to backorder	Slide (Contains 17)	£5.06 £4.22
20	ST9645 951 3076 In stock	O-ring 5.1x1.6-FKM90	£0.89 £0.74
21	ST9645 951 9520 Available to backorder	O-ring1082x178-FKM90	£1.00 £0.83
23	ST4950 500 1605 Available to backorder	Rotary nozzle Ø 104 mm white (Contains 24)	£23.66 £19.72
24	ST4950 007 1003 Available to backorder	Repair kit f. rotary nozzle Ø 101 mm	£13.42 £11.18
25	ST4950 500 5601 Available to backorder	Spray set (Contains 26)	£45.60 £38.00
