RA 504 TR-B - 2012-2013 - 295506023/08 - Castel Garden Rotary Mower Blade Diagram

Description

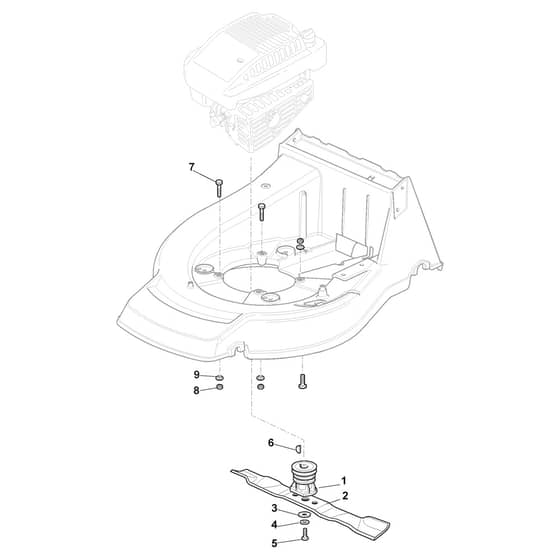

Castel Garden RA 504 TR-B Parts Diagram

Product Name - RA 504 TR - B

Model Year - 2012-2013

Model Type - PAN 504 TR

Art.N - 295506023/08

Engine Model -

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£9.30 £7.75
2	MO181004366/2 In stock	Blade	£13.84 £11.53
2	MO181004381/1 In stock	Blade Stiga Packed into 181004381.1 To 31-8-2018	£15.41 £12.84
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 In stock	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
