R27M - 2016-2017 - 2T0070486/SF - Mountfield Ride On Mower Engine Diagram

Description

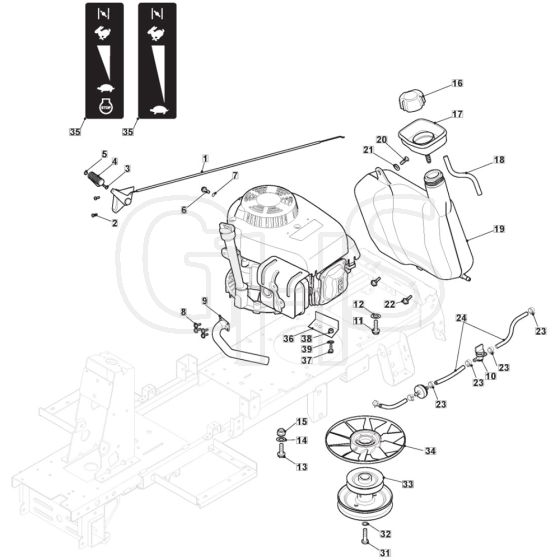

Mountfield R27M Parts Diagram

Product Name - R27 M

Model Year - 2016-2017

Model Type - MJ 66 E

Art.N - 2T0070486/SF

Engine Model - 5750 E.S. 224cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184000256/0 Available to backorder	Throttle Cable	£22.25 £18.54
2	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
3	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
4	MO125394501/0 Available to backorder	Knob	£1.55 £1.29
5	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
6	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
7	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
8	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
9	MO118738261/2 Available to backorder	Exhaust Pipe	£45.02 £37.52
10	MO118566119/0 Available to backorder	Shut Out Valve	£14.64 £12.20
11	MO112735109/2 Available to backorder	Screw From 01-9-2014	£2.50 £2.08
12	MO112540070/0 Available to backorder	Washer	£1.55 £1.29
13	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
14	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
15	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
16	MO127790000/1 In stock	Fuel Cap	£5.94 £4.95
17	MO327600180/0 Available to backorder	Tank Protection	£3.94 £3.28
18	MO327869054/1 Available to backorder	Fuel Discharge Pipe	£22.67 £18.89
19	MO327733008/0 Available to backorder	Fuel Tank	£54.90 £45.75
20	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
21	MO112523040/0 In stock	Washer	£1.49 £1.24
22	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
23	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
24	MO325869035/1 Available to backorder	Connecting Tube	£9.07 £7.56
31	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
32	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
33	MO384601500/1 Available to backorder	Pulley	£60.54 £50.45
34	MO327951200/0 Available to backorder	Fan	£7.46 £6.22
35	MO114366874/0 Available to backorder	Label From 01-9-2015	£2.40 £2.00
35	MO114366905/0 Available to backorder	Label To 31-8-2015	£2.40 £2.00
36	MO327772239/0 Available to backorder	Bracket	£9.50 £7.92
37	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
38	MO112154510/0 In stock	Nut From 01-9-2014	£1.55 £1.29
38	MO112292102/0 In stock	Nut To 31-8-2014	£1.69 £1.41
39	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
