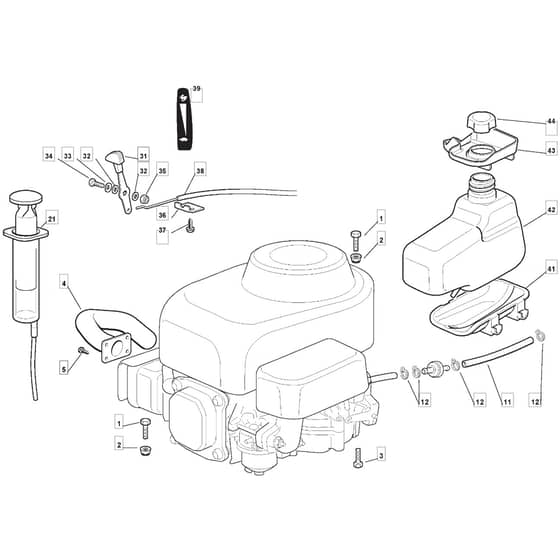

R25V - 2011-2013 - 2T0030436/BQ - Mountfield Ride On Mower Engine Diagram

Description

Mountfield R25V Parts Diagram

Product Name - R25 V

Model Year - 2011-2013

Model Type - ELV 63

Art.N - 2T0030436/BQ

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
3	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
4	MO318738201/0 Available to backorder	Exhaust Pipe El 63 Enduro 6Hp	£21.13 £17.61
5	MO112735111/0 Available to backorder	Screw To 31-8-2010	£1.82 £1.52
5	MO112691115/0 Available to backorder	Screw From 01-9-2010	£1.55 £1.29
11	MO325869035/1 Available to backorder	Connecting Tube	£9.07 £7.56
12	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
21	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
31	MO381007280/2 Available to backorder	Dashboard Throttle Lever To 31-8-2010	£3.12 £2.60
32	MO112523040/0 In stock	Washer	£1.49 £1.24
33	MO112530060/0 Available to backorder	Spring Washer	£1.36 £1.13
34	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO322981467/0 Available to backorder	Plate	£1.55 £1.29
37	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
38	MO184000253/1 Available to backorder	Throttle Cable	£8.72 £7.27
41	MO127787057/0 Available to backorder	Support	£3.67 £3.06
42	MO127733002/1 Available to backorder	Fuel Tank	£154.46 £128.72
43	MO127600113/0 Available to backorder	Plastic Petrol Protection	£1.97 £1.64
44	MO127790000/1 In stock	Fuel Tank Cap B&S Intek 65	£5.94 £4.95
