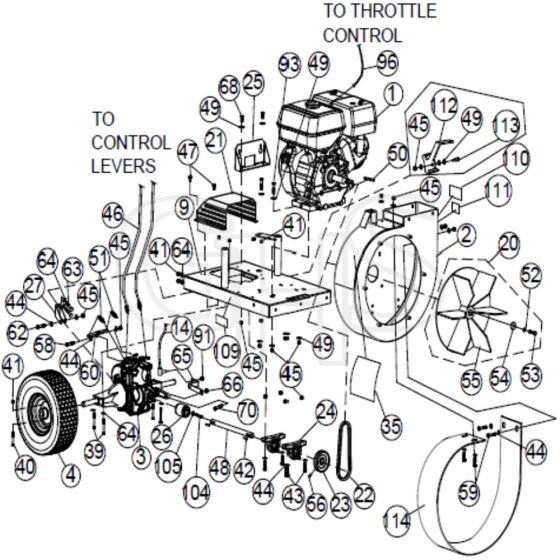

Billy Goat QV900HSPEU - QVSPEU Vacuum Main Diagram

Ref. Img. Part No. Details
  3 Transaxle Hydro Gear BG831218
Transaxle Hydro Gear
Out of stock
£1,108.38 £923.65

  20 Impeller Assy BG831121-S
Impeller Assy
Out of stock
£529.10 £440.92

  22 Belt Gates 6824 BG831280
Belt Gates 6824
Out of stock
£20.24 £16.87

  24 Bearing 3/4 BG350133
Bearing 3/4" Cast P Block
Out of stock
£45.28 £37.73

  26 Coupler Transaxle BG831205-S
Coupler Transaxle
Out of stock
£228.36 £190.30

  41 Nut Lock 1/4 BG8160001
Nut Lock 1/4"-20 Hex Zp
Out of stock
£0.97 £0.81

  42 Key 3/16 BG9201078
Key 3/16" Sq X 1"
Out of stock
£2.40 £2.00

  43 Screwcap 5/16 BG8041029
Screwcap 5/16"-18 X 1 1/4" Hcs Zp
Out of stock
£0.97 £0.81

  44 Washer 5/16 BG8172008
Washer 5/16" Sae
Out of stock
£0.78 £0.65

  45 Nut Lock 5/16 BG8160002
Nut Lock 5/16"-18 Hex Zp
Out of stock
£0.97 £0.81

  46 Cable Control Drive BG831309-S
Cable Control Drive
Out of stock
£126.66 £105.55

  47 Screw Self Tap 1/4 BG890359
Screw Self Tap 1/4"-20 X 5/8" Hwh Type F
Out of stock
£1.40 £1.17

  49 Washer 5/16 BG8171003
Washer 5/16" Flat
Out of stock
£0.78 £0.65

  52 Washer Lock 7/16 BG8177013
Washer Lock 7/16" St Med
Out of stock
£0.78 £0.65

  53 Screwcap 7/16-20 X 2 BG500188
Screwcap 7/16-20 X 2" Gr 8 Zp
Out of stock
£3.12 £2.60

  59 Screwcap 5/16-18 X 3/4 Gr 5 Hcs Zp BG8041026
Screwcap 5/16-18 X 3/4 Gr 5 Hcs Zp
Out of stock
£0.97 £0.81

  62 Screwcap 5/16 BG8041031
Screwcap 5/16"-18 X 1 3/4" Hcs Zp
Out of stock
£0.97 £0.81

  63 Carriage Bolt 1/4 BG8024021
Carriage Bolt 1/4"-20 X 3/4" Zp
Out of stock
£0.97 £0.81

  64 Washer 1/4 BG8172007
Washer 1/4" Sae
Out of stock
£0.78 £0.65

  66 Nut Lock 3/8 BG8160003
Nut Lock 3/8"-16 Hex
Out of stock
£0.97 £0.81

  68 Screwcap 5/16-18 X 3/4 Hcs Zp BG8041035
Screwcap 5/16-18 X 3/4 Hcs Zp
Out of stock
£0.97 £0.81

  70 Screwcap 3/8 BG8041051
Screwcap 3/8"-16 X 1 1/4" Hcs Zp
Out of stock
£0.97 £0.81

  96 Cable Throttle BG440178
Cable Throttle
Out of stock
£39.60 £33.00

  109 Label Danger Guard BG900327
Label Danger Guard
Out of stock
£3.71 £3.09


Description

QV900HSPEU Parts Diagram
