Billy Goat QV900HSP - Lawn & Litter Vacuums Main Diagram

Description

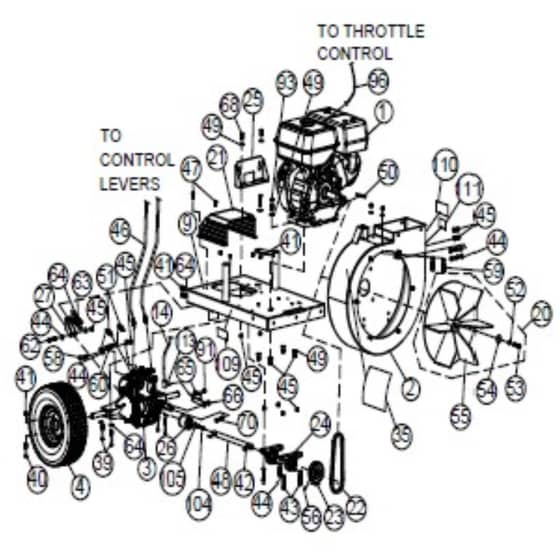

QV900HSP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	BG831218 Available to backorder	Transaxle Hydro Gear	£1,108.38 £923.65
20	BG831121-S Available to backorder	Impeller Assy	£529.10 £440.92
22	BG831280 Available to backorder	Belt Gates 6824	£20.24 £16.87
24	BG350133 Available to backorder	Bearing 3/4" Cast P Block	£44.10 £36.75
26	BG831205-S Available to backorder	Coupler Transaxle	£228.36 £190.30
41	BG8160001 Available to backorder	Nut Lock 1/4"-20 Hex Zp	£0.97 £0.81
42	BG9201078 Available to backorder	Key 3/16" Sq X 1"	£3.12 £2.60
43	BG8041029 Available to backorder	Screwcap 5/16"-18 X 1 1/4" Hcs Zp	£0.97 £0.81
44	BG8172008 Available to backorder	Washer 5/16" Sae	£0.78 £0.65
45	BG8160002 Available to backorder	Nut Lock 5/16"-18 Hex Zp	£0.97 £0.81
46	BG831309-S Available to backorder	Cable Control Drive	£123.40 £102.83
47	BG890359 Available to backorder	Screw Self Tap 1/4"-20 X 5/8" Hwh Type F	£1.34 £1.12
49	BG8171003 Available to backorder	Washer 5/16" Flat	£0.78 £0.65
52	BG8177013 Available to backorder	Washer Lock 7/16" St Med	£0.78 £0.65
53	BG500188 Available to backorder	Screwcap 7/16-20 X 2" Gr 8 Zp	£3.12 £2.60
59	BG8041026 Available to backorder	Screwcap 5/16"-18 X 3/4" Hcs Zp	£0.97 £0.81
62	BG8041031 Available to backorder	Screwcap 5/16"-18 X 1 3/4" Hcs Zp	£0.97 £0.81
63	BG8024021 Available to backorder	Carriage Bolt 1/4"-20 X 3/4" Zp	£0.97 £0.81
64	BG8172007 Available to backorder	Washer 1/4" Sae	£0.78 £0.65
66	BG8160003 Available to backorder	Nut Lock 3/8"-16 Hex	£1.20 £1.00
68	BG8041035 Available to backorder	Screwcap 5/16-18 X 3/4 Hcs Zp	£0.97 £0.81
70	BG8041051 Available to backorder	Screwcap 3/8"-16 X 1 1/4" Hcs Zp	£0.97 £0.81
96	BG440178 Available to backorder	Cable Throttle	£39.60 £33.00
109	BG900327 Available to backorder	Label Danger Guard	£3.71 £3.09
