QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Recoil Starter Diagram

Description

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

	Part No.	Details
1	HP28400-Z1V-812ZA Available to backorder	Starter Assy. Recoil (Long Rope) Nh1	£92.52 £77.10
2	HP28410-Z1V-701ZA Available to backorder	Case Comp. Recoil Starter Nh1	£125.52 £104.60
3	HP28420-Z1V-702 Available to backorder	Reel. Recoil Starter (Black)	£38.76 £32.30
5	HP28431-ZH8-801 In stock	Plate. Friction	Was £6.37 £5.31 Special Price £5.10 £4.25

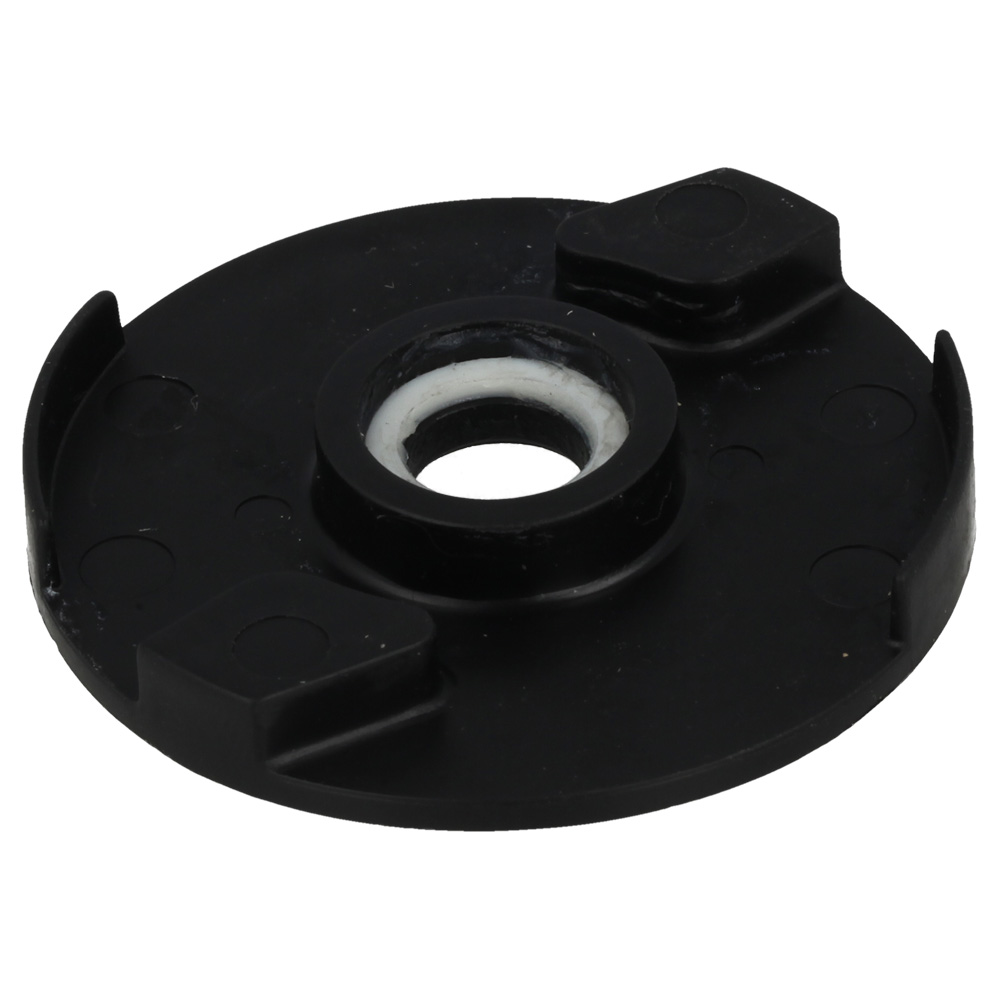

6	HP28433-Z1T-702 In stock	Guide. Ratchet	Was £15.35 £12.79 Special Price £10.68 £8.90
7	HP28441-ZH8-801 In stock	Spring. Friction	Was £7.66 £6.38 Special Price £5.33 £4.44
8	HP28442-ZH8-003 Available to backorder	Spring. Recoil Starter	£28.37 £23.64

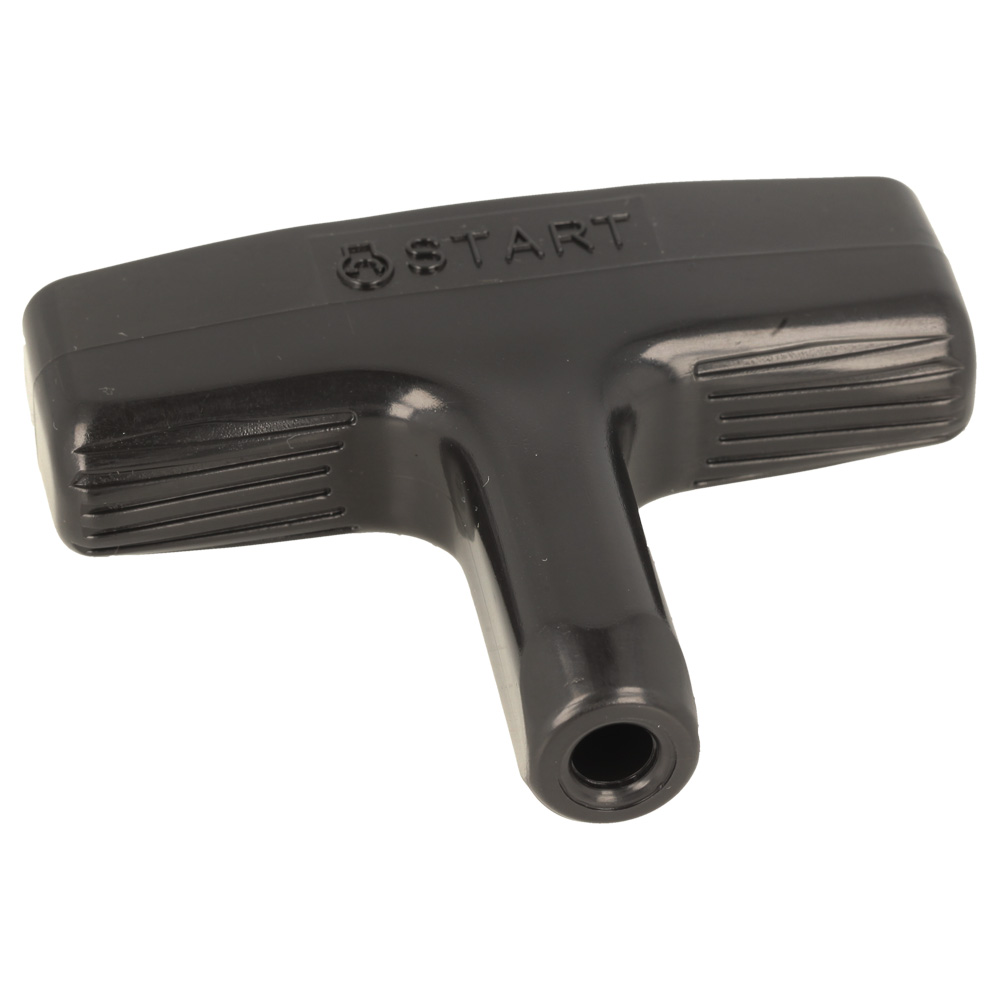

10	HP28461-ZE1-013 Available to backorder	Knob. Recoil Starter	£12.78 £10.65
13	HP90003-ZH8-801 In stock	Screw. Setting	Was £9.00 £7.50 Special Price £6.48 £5.40
14	HP95701-0600800 In stock	Bolt. Flange. 6X8	£1.37 £1.14
15	HP28400-Z1V-811ZA Available to backorder	Starter Assy. Recoil (Long Rope) Nh1	£113.04 £94.20

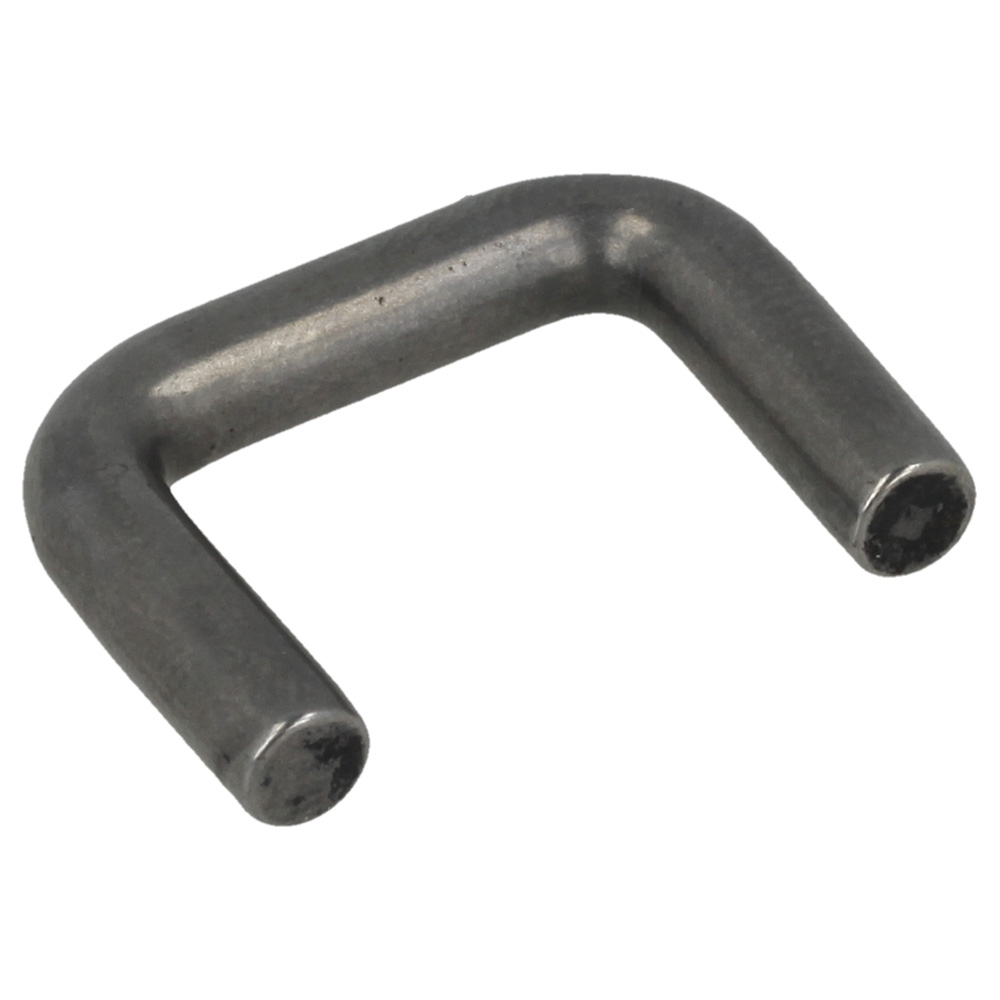

16	HP28422-Z1T-701 Available to backorder	Ratchet. Starter	£11.78 £9.82

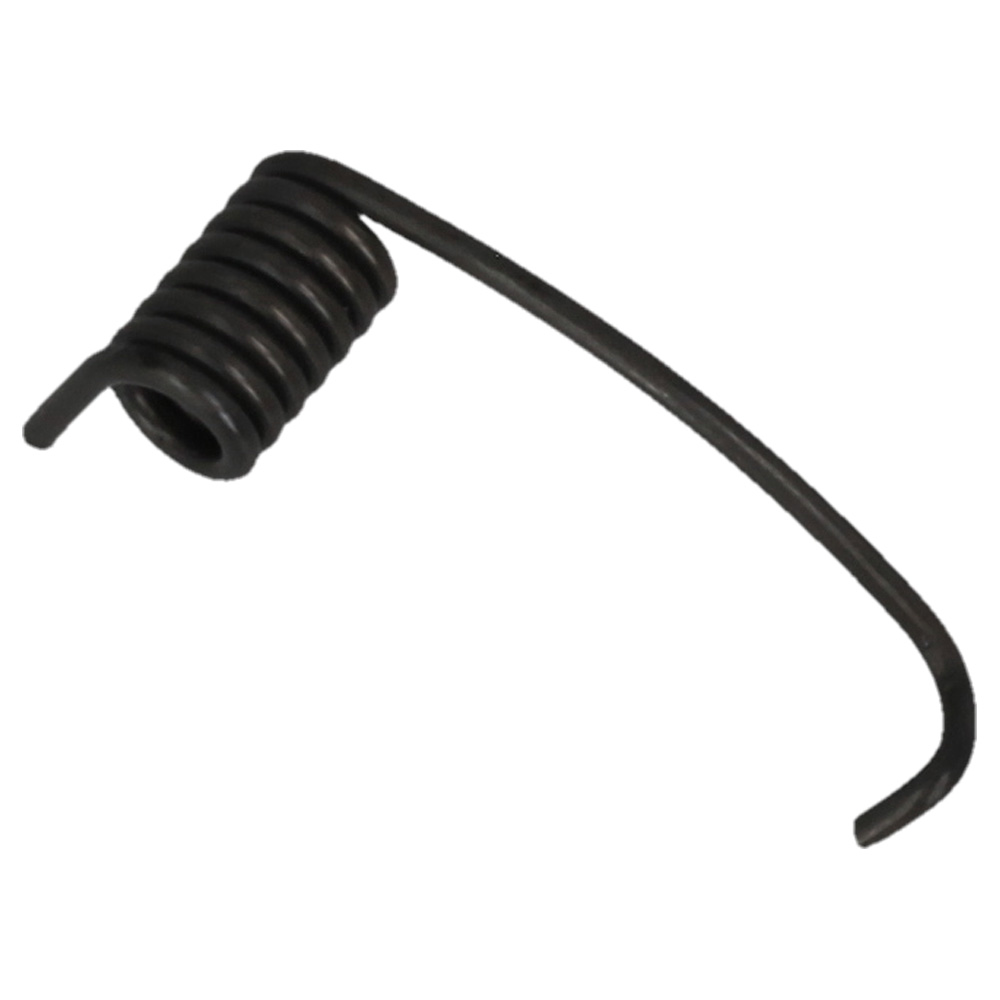

19	HP28443-Z1T-701 Available to backorder	Spring. Return	£3.94 £3.28
