QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Handle Diagram

Description

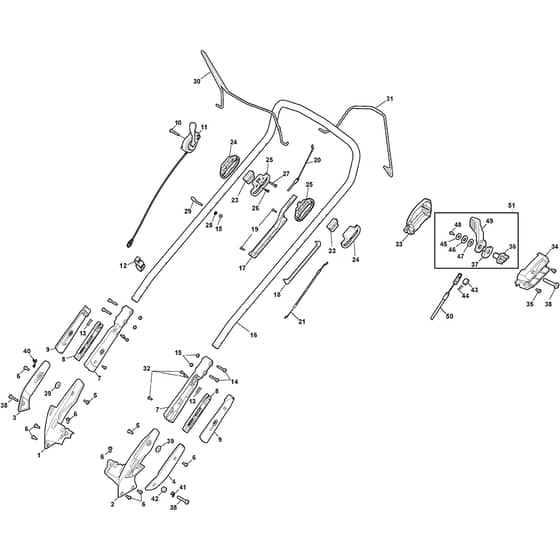

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

	Part No.	Details
1	MO381005219/1 In stock	Right Bracket	£35.20 £29.33
2	MO381005221/1 Available to backorder	Left Bracket	£38.00 £31.67
3	MO381005239/0 Available to backorder	Cover. Right	£16.34 £13.62
4	MO381005241/0 Available to backorder	Cover. Left	£16.34 £13.62
5	MO122517885/0 Available to backorder	Pin	£3.25 £2.71
6	MO112735664/0 In stock	Screw	£1.39 £1.16
7	MO381005243/0 In stock	External Guide	£23.65 £19.71
8	MO322246106/0 Available to backorder	Cursor	£12.94 £10.78
9	MO381005245/0 Available to backorder	Internal Guide	£16.19 £13.49
10	MO112727786/0 Available to backorder	Screw	£1.97 £1.64
11	MO381030134/0A In stock	Blade Friction Clutch Cable	£147.79 £123.16
12	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
13	MO125430202/1 Available to backorder	Spring	£1.70 £1.42
14	MO112727799/0 Available to backorder	Screw	£1.84 £1.53
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO381007637/0 Available to backorder	Handle. Upper Part	£80.22 £66.85
17	MO322806652/0 Available to backorder	Internal Support. Black	£6.46 £5.38
18	MO322806653/0 Available to backorder	External Support. Black	£5.06 £4.22
19	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
20	MO381030123/0 Available to backorder	Cable Com. Cursor. Assy	£10.08 £8.40
21	MO381030118/0 In stock	Clutch Cable	£20.14 £16.78
23	MO322394544/0 Available to backorder	Lever. Black	£2.94 £2.45
24	MO322722839/0 Available to backorder	External Protection. Black	£3.52 £2.93
25	MO322722838/0 Available to backorder	Internal Protection. Black	£3.52 £2.93
27	MO112728705/0 Available to backorder	Screw	£2.69 £2.24
28	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
29	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
30	MO181103505/0 Available to backorder	Lever. Engine Brake To 25-3-2021	£40.96 £34.13
30	MO181103524/0 Available to backorder	Lever. Engine Brake From 26-3-2021	£40.96 £34.13
31	MO181003438/1 Available to backorder	Drive Control Lever To 25-3-2021	£33.79 £28.16
32	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
33	MO322722845/0 Available to backorder	Starting Block Outer Half-Bearing Stiga Grey	£3.92 £3.27
34	MO322722844/0A Available to backorder	Starting Block Inner Half-Bearing Stiga Grey	£7.46 £6.22
35	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
37	MO322109592/0 Available to backorder	Cam	£1.84 £1.53
38	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
39	MO9694-0001-00 Available to backorder	Washer	£1.63 £1.36
40	MO122430323/0 Available to backorder	Spring	£2.69 £2.24
43	MO322109593/0 Available to backorder	Slide	£1.84 £1.53
44	MO122450487/0 Available to backorder	Spring	£1.63 £1.36
45	MO112523040/0 In stock	Washer	£1.55 £1.29
46	MO322672157/0 Available to backorder	Washer	£1.55 £1.29
48	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
49	MO381007240/1 Available to backorder	Variator Lever Assy Black	£33.79 £28.16
50	MO181005542/0 Available to backorder	Throttle Cable	£13.68 £11.40
51	MO381007823/0 Available to backorder	Mp2 Bbc Variator Speed Lever [Black]	£36.59 £30.49
