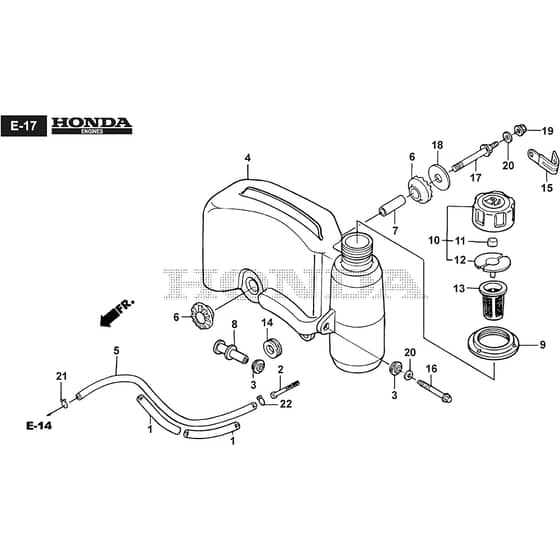

QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Fuel Tank Diagram

Description

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Rubber. Supporter (107mm)	£3.70 £3.08

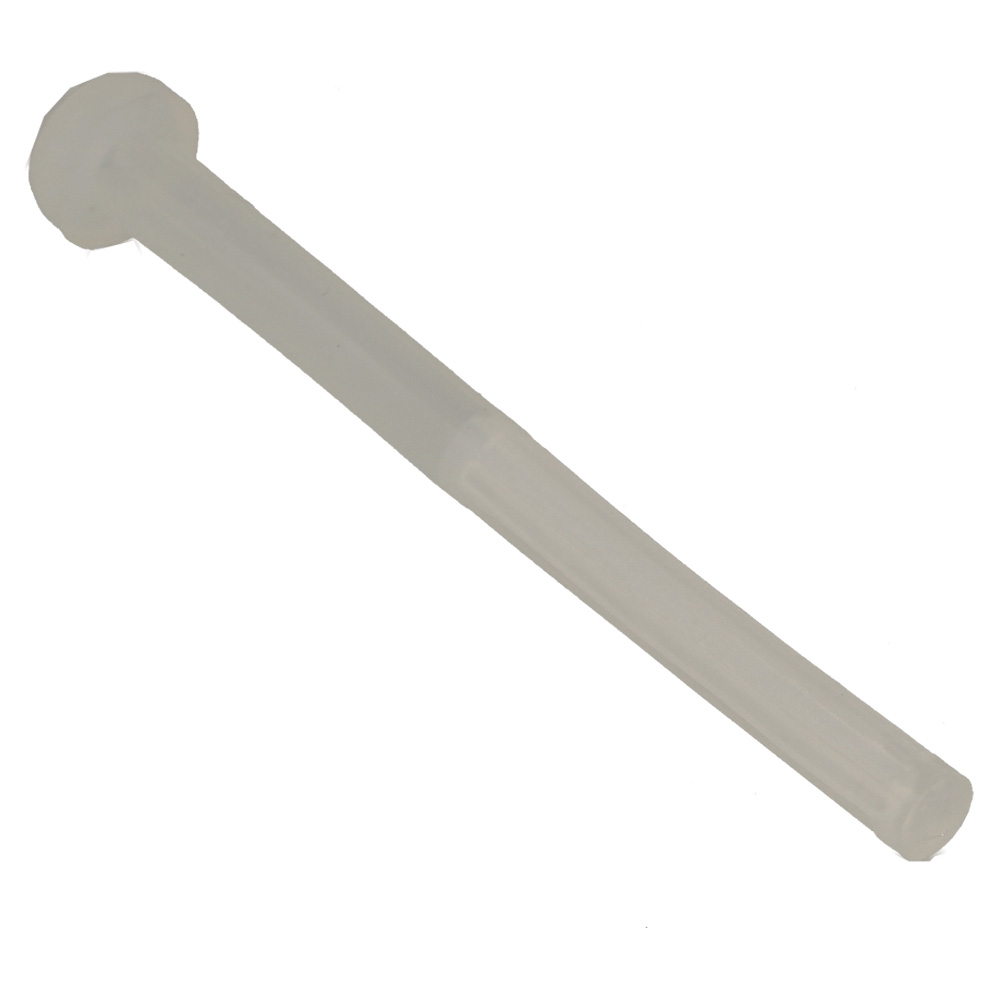

2	HP16952-Z1V-000 Available to backorder	Strainer. Fuel	£7.96 £6.63
3	HP17506-ZE7-000 Available to backorder	Rubber. Tank Setting	£3.05 £2.54
4	HP17510-Z1V-010 Available to backorder	Tank Comp. Fuel	£121.68 £101.40

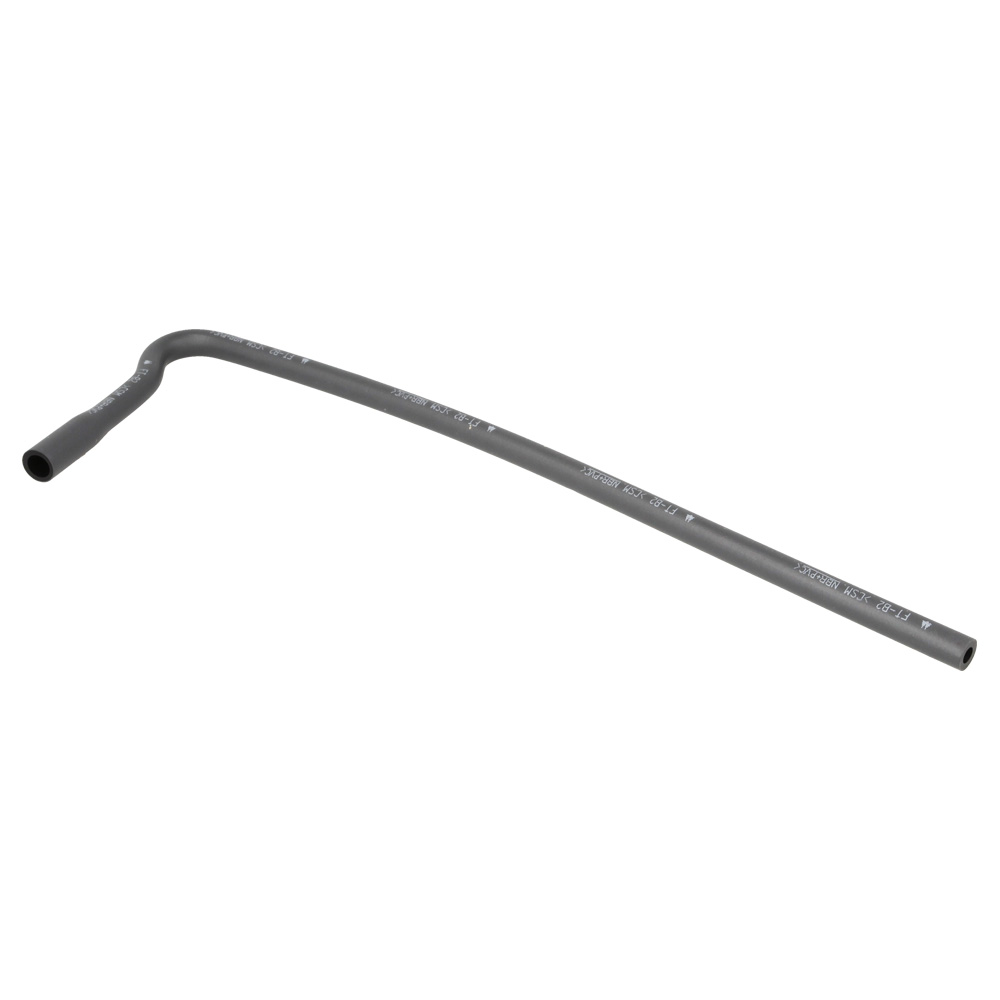

5	HP17512-ZE7-010 In stock	Tube. Fuel	£23.50 £19.58
6	HP17516-896-700 Available to backorder	Rubber B. Tank Mounting	£6.86 £5.72
7	HP17518-Z1V-000 Available to backorder	Collar. Tank Set	£8.81 £7.34
8	HP17519-Z1V-000 Available to backorder	Collar Comp. Tank	£8.81 £7.34
10	HP17620-ZL8-023 In stock	Cap Assy. Fuel Tank	£11.40 £9.50
11	HP17622-888-010 In stock	Sponge. Fuel Cap Breather	£1.50 £1.25
12	HP17624-ZE7-000 Available to backorder	Packing. Fuel Cap	£3.40 £2.83
13	HP17636-Z1V-010 Available to backorder	Gauge. Fuel Level	£13.76 £11.47
14	HP80103-MG2-000 Available to backorder	Cushion. Rr. Fender	£6.08 £5.07
16	HP90014-Z1V-000 Available to backorder	Bolt. Flange. 6X47 (Ct200)	£3.47 £2.89
17	HP90016-Z1V-000 Available to backorder	Bolt. Tank Stay	£11.78 £9.82
18	HP90455-896-700 Available to backorder	Washer. Tank Mounting	£5.21 £4.34
19	HP94050-06000 In stock	Nut. Flange. 6mm	£3.22 £2.68
21	HP95002-02080 Available to backorder	Clip. Tube (B8)	£1.08 £0.90
22	HP95002-70000 Available to backorder	Clip. Tube (C11)	£1.04 £0.87
