QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Exhaust Muffler Diagram

Description

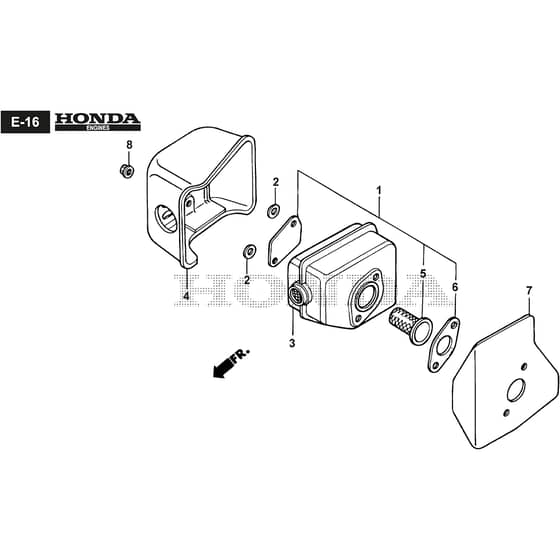

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

	Part No.	Details
1	HP06180-ZE6-820 Available to backorder	Arrester Kit. Spark	£20.04 £16.70
2	HP18292-ZE7-M10 Available to backorder	Packing. Protector	£3.34 £2.78
3	HP18310-Z1V-010 Available to backorder	Muffler Comp.	£88.56 £73.80
4	HP18320-Z1V-010 Available to backorder	Protector Comp. Muffler	£69.00 £57.50
5	HP18355-888-810 Available to backorder	Arrester. Spark	£19.12 £15.93
6	HP18381-ZE6-820 Available to backorder	Gasket. Muffler	£4.86 £4.05
7	HP18381-Z1V-000 Available to backorder	Gasket. Muffler	£33.53 £27.94
8	MO118552235/0 Available to backorder	Self-Lock Nut 6mm	£4.03 £3.36
