QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Deck Diagram

Description

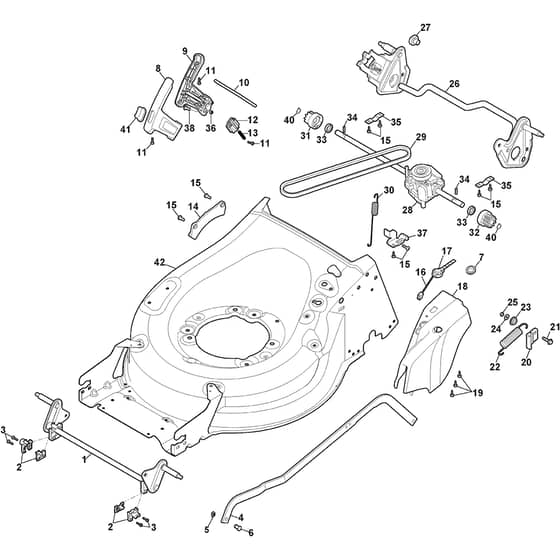

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302903/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH094132	£30.97 £25.81
2	MO322785305/1 In stock	Support	£2.68 £2.23
4	MO322869727/0 Available to backorder	Adjustment Rod To S.N 20CA2WBH017029	£49.26 £41.05
4	MO322869727/1 Available to backorder	Adjustment Rod From S.N 20CA2WBH017030	£43.64 £36.37
5	MO112436050/0 In stock	Plate	£1.82 £1.52
6	MO122519823/0 In stock	Pin	£2.26 £1.88
7	MO118564526/0 Available to backorder	Fairlead	£1.55 £1.29
8	MO322394534/0 In stock	Upper Handle Black	£4.22 £3.52
9	MO322394555/0 In stock	Lower Handgrip Black and Black	£5.76 £4.80
10	MO322869723/0 In stock	Rod	£1.69 £1.41
11	MO112728697/0 In stock	Screw	£1.55 £1.29
12	MO322109580/0 In stock	Slide	£6.34 £5.28
13	MO122450484/0 Available to backorder	Spring	£1.55 £1.29
14	MO322735592/0 Available to backorder	Sector. Height Adjustment	£11.69 £9.74
16	MO322602031/0 Available to backorder	Position Plate	£2.12 £1.77
17	MO322602027/0 Available to backorder	Lens	£1.82 £1.52
18	MO322060304/0 In stock	Deck. Adjustment Grey NCS S8000	£15.20 £12.67
19	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
20	MO322551683/0 Available to backorder	Spring Clamp	£6.05 £5.04
21	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
22	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
23	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
24	MO112523040/0 In stock	Washer	£1.49 £1.24
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO381302939/0 Available to backorder	Rear Wheel Axle From 01-6-2018 To S.N 20DA2WBH029556	£55.86 £46.55
26	MO381302939/1 Available to backorder	Rear Wheel Axle From S.N 20DA2WBH029556	£62.60 £52.17
26	MO381302905/0 Available to backorder	Rear Wheel Axle To 31-5-2018	£55.86 £46.55
27	MO322038407/0 Available to backorder	Brass	£1.49 £1.24
28	MO181003118/0 Available to backorder	Gear Box	£190.98 £159.15
29	MO135063902/1 In stock	Belt From 01-9-2018	£9.49 £7.91
30	MO122450478/0 Available to backorder	Spring	£8.87 £7.39
31	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
32	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
33	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
34	MO122753000/0 In stock	Pin	£1.55 £1.29
35	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
36	MO112154330/0 In stock	Nut	£1.55 £1.29
37	MO322778489/0 Available to backorder	Plate	£2.40 £2.00
38	MO9943-0516-16 In stock	Screw	£1.22 £1.02
40	MO112608600/0 In stock	Seeger	£1.55 £1.29
41	MO322602032/0 Available to backorder	Button. Black	£1.40 £1.17
42	MO381004873/1 Available to backorder	Hybrid Steel Deck Mp2 55Sd [Green]	£197.09 £164.24
