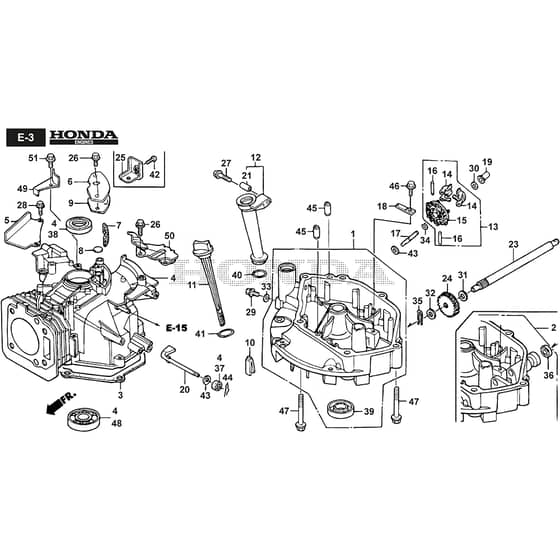

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

	Part No.	Details
3	HP11381-ZE7-M10 Available to backorder	Packing. Oil Pan	£16.36 £13.63
4	HP12000-Z2J-405 Available to backorder	Barrel Assy. Cylinder	£608.40 £507.00
5	HP12125-Z1V-000 Available to backorder	Plate. Guide	£11.52 £9.60
7	HP12367-883-003 Available to backorder	Filter. Breather	£10.03 £8.36
8	HP12372-ZE7-000 Available to backorder	Valve. Breather	£5.41 £4.51
9	HP12373-ZE7-000 Available to backorder	Packing. Breather Cover	£2.41 £2.01
10	HP15335-ZE7-000 Available to backorder	Rubber. Oil Return	£3.52 £2.93
11	HP15620-ZE6-810 Available to backorder	Gauge Comp. Oil Level	£18.34 £15.28
12	HP15630-ZE6-810 Available to backorder	Extension. Oil Filler	£28.31 £23.59
13	HP16510-ZE6-000 Available to backorder	Governor Assy.	£26.36 £21.97
14	HP16511-ZE1-000 Available to backorder	Weight. Governor	£4.20 £3.50
15	HP16512-ZE6-000 Available to backorder	Holder. Governor Weight	£16.69 £13.91
16	HP16513-ZE1-000 Available to backorder	Pin. Governor Weight	£1.98 £1.65
17	HP16515-ZE6-010 Available to backorder	Shaft. Governor Holder	£8.06 £6.72
18	HP16525-ZE6-010 Available to backorder	Plate. Governor Shaft Holder	£7.97 £6.64
19	HP16531-Z1T-000 Available to backorder	Slider. Governor	£4.01 £3.34
20	HP16541-ZE7-000 Available to backorder	Shaft. Governor Arm	£11.18 £9.32
27	HP90017-883-000 Available to backorder	Bolt. Flange. 6X32 (Ct200)	£4.09 £3.41
28	HP90022-888-010 Available to backorder	Bolt. Flange. 6X20 (Ct200)	£2.74 £2.28
29	HP90131-ZE1-000 Available to backorder	Bolt. Drain Plug	£2.64 £2.20
30	HP90451-ZE1-000 Available to backorder	Washer. Thrust. 6mm	£1.93 £1.61
33	HP90601-ZE1-000 Available to backorder	Washer. Drain Plug. 10.2mm	£1.10 £0.92
34	HP90602-ZE1-000 Available to backorder	Clip. Governor Holder	£3.73 £3.11
37	HP91231-Z1V-003 Available to backorder	Oil Seal. 6X11X4 (Arai)	£2.95 £2.46

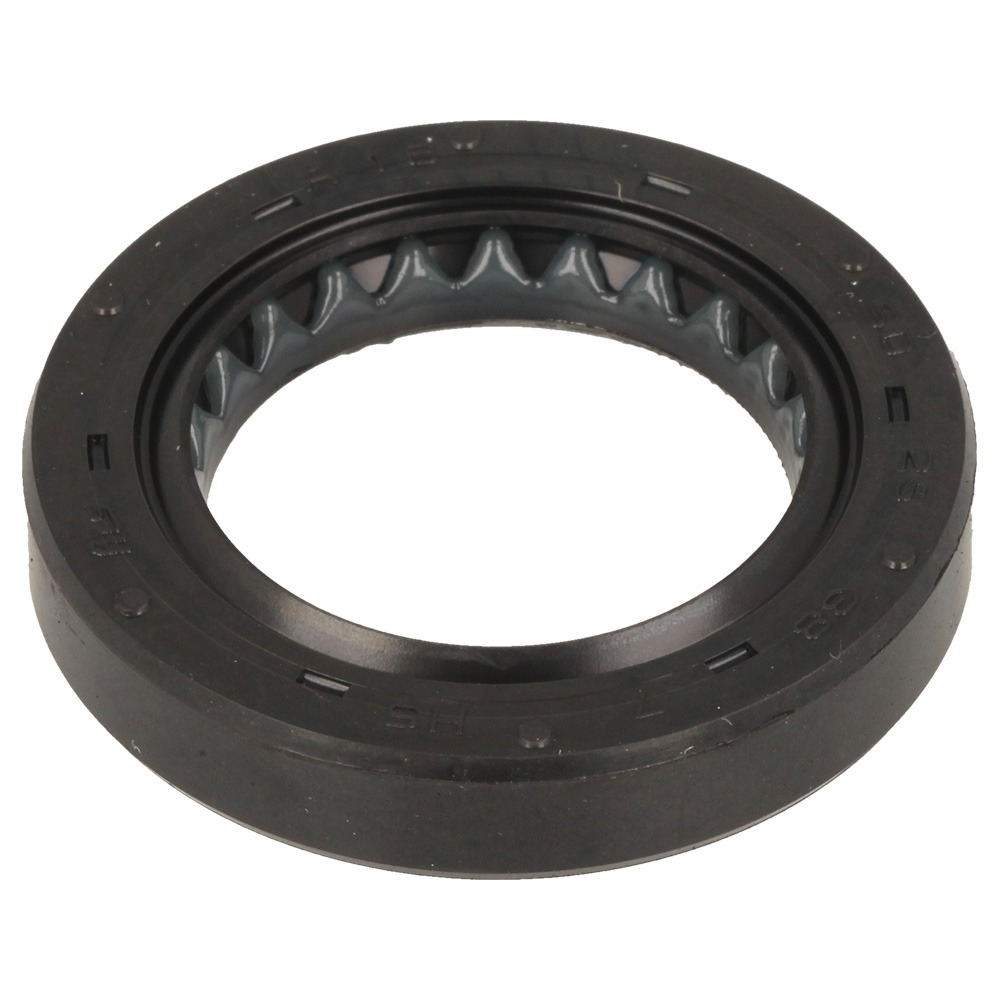

38	HP91251-Z1V-003 Available to backorder	Oil Seal. 25X38X7 (Arai)	£10.58 £8.82
39	HP91252-Z1V-003 Available to backorder	Oil Seal. 25.4X40X7	£10.58 £8.82
40	HP91301-Z1V-003 Available to backorder	O-Ring. 22.1X2.2	£1.92 £1.60
41	HP91302-Z1V-003 Available to backorder	O-Ring. 25.5X3	£4.78 £3.98
43	HP94101-06800 Available to backorder	Washer. Plain. 6mm	£1.03 £0.86
44	HP94251-08000 In stock	Pin. Lock. 8mm	£1.84 £1.53
45	HP94301-08140 Available to backorder	Dowel Pin. 8X14	£3.06 £2.55
46	HP95701-0601208 Available to backorder	Bolt. Flange. 6X12	£1.32 £1.10
47	HP95701-0805000 Available to backorder	Bolt. Flange. 8X50	£2.38 £1.98
48	HP96100-6205000 Available to backorder	Bearing. Radial Ball. 6205	£21.89 £18.24
49	HP12126-Z1V-000 Available to backorder	Plate A. Guide	£25.69 £21.41
50	HP17560-Z1V-000 Available to backorder	Stay Comp. Tank	£117.36 £97.80
51	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
