QUATTRO 22SH BBC 4in1 - 2018-2021 - 294568837/AT8 - Atco Rotary Mower Carburettor Diagram

Description

Atco QUATTRO 22SH BBC 4in1 Parts Diagram

Product Name - Quattro 22SH BBC

Model Year - 2018-2021

Model Type - MP2 554 SQ

Art.N - 294568837/AT8

Engine Model - GXV160 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-ZE0-025 Available to backorder	Gasket Set	£22.32 £18.60
2	HP16011-ZE0-005 Available to backorder	Valve Set. Float	£32.26 £26.88
3	HP16013-Z0S-B01 Available to backorder	Float Set	£34.12 £28.43
4	HP16015-ZE0-831 Available to backorder	Chamber Set. Float	£45.14 £37.62
5	HP16016-ZH7-W01 Available to backorder	Screw Set. Pilot	£20.83 £17.36
6	HP16024-ZE1-811 Available to backorder	Screw Set. Drain	£13.56 £11.30
7	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
8	HP16045-Z1V-G01 Available to backorder	Choke Set	£38.16 £31.80
9	HP16100-Z1V-802 Available to backorder	Carburetor Assy. (Be66N A)	£99.36 £82.80
10	HP16124-ZE0-005 Available to backorder	Screw. Throttle Stop	£12.92 £10.77
11	HP16166-Z1V-801 Available to backorder	Nozzle. Main	£41.70 £34.75
12	HP16211-ZE7-000 Available to backorder	Insulator. Carburetor	£12.37 £10.31

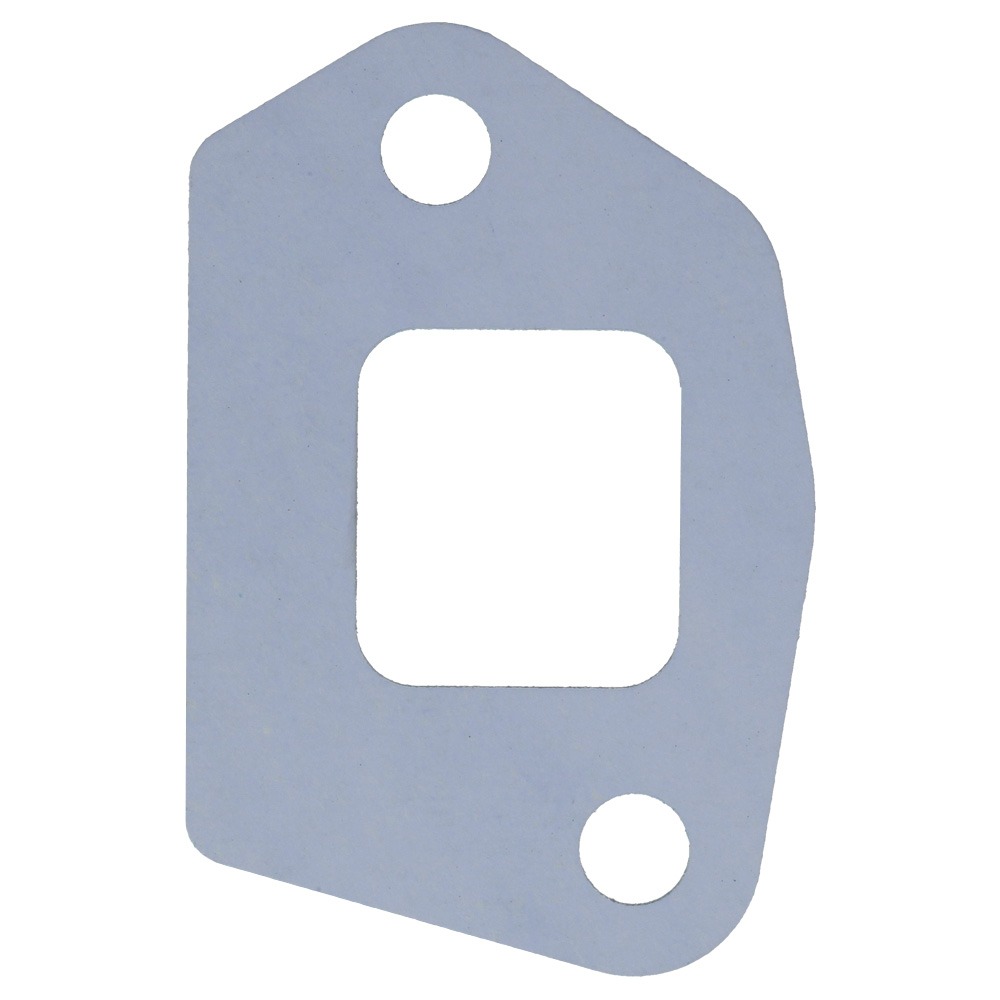

13	HP16212-Z1V-701 Out of stock	Packing. Insulator (Ningbo Sil Gasket)	£3.78 £3.15
14	HP16220-ZE6-010 In stock	Spacer Comp. Carburetor	£7.02 £5.85

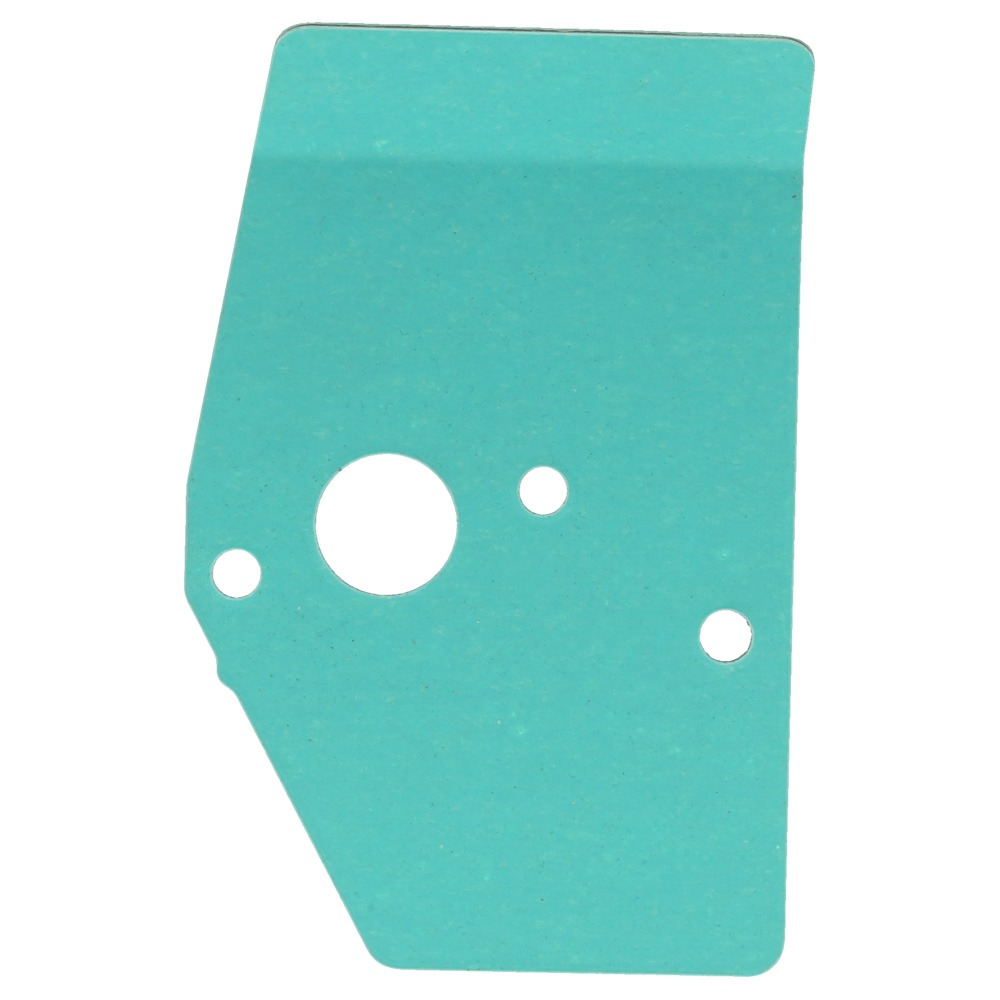

15	HP16221-Z1V-701 Available to backorder	Packing. Carburetor (Ningbo Sil Gasket)	£29.44 £24.53
16	HP16953-ZE1-812 Available to backorder	Lever. Cock	£13.20 £11.00
17	HP16954-ZE1-812 Available to backorder	Plate. Lever Setting	£7.36 £6.13
18	HP16956-ZE1-811 Available to backorder	Spring. Cock Lever	£4.43 £3.69
19	HP16957-ZE1-812 Available to backorder	Packing. Fuel Cock	£4.46 £3.72
20	HP93500-03006-1H Available to backorder	Screw. Pan. 3X6	£1.34 £1.12
21	HP99101-ZH8-0620 Available to backorder	Jet. Main. #62	£13.81 £11.51
21	HP99101-ZK7-0650 Available to backorder	Jet. Main. #65	£13.56 £11.30
21	HP99101-ZK7-0680 Available to backorder	Jet. Main. #68	£13.56 £11.30
22	HP99204-ZE0-0350 Available to backorder	Jet Set. Pilot. #35	£25.39 £21.16
