QUATTRO 22SA - 2013 - 292552027/AT3 - Atco Rotary Mower Upper Handle Diagram

Name: QUATTRO 22SA - 2013 - 292552027/AT3 - Atco Rotary Mower Upper Handle Diagram
SKU: quattro_22sa_292552027_at3_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. quattro_22sa_292552027_at3_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 22SA - 2013 - 292552027/AT3 - Atco Rotary Mower Upper Handle Diagram

Description

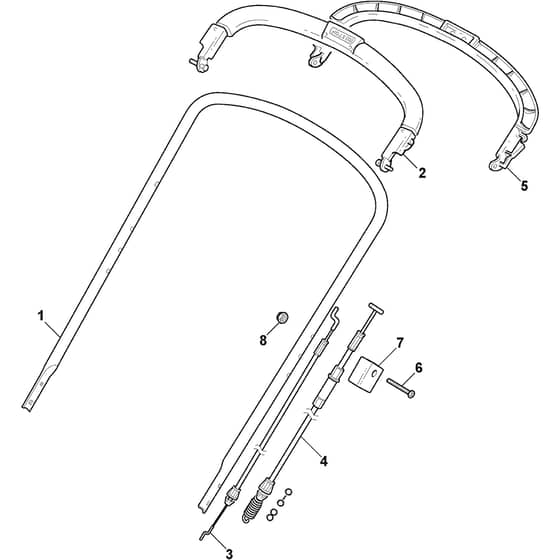

Atco QUATTRO 22SA Parts Diagram

Product Name - Quattro 22SA

Model Year - 2013

Model Type - TU 554 TR

Art.N - 292552027/AT3

Engine Model -

	Part No.	Details
1	MO381006618/1 Available to backorder	Handle. Upper Part	£50.69 £42.24
3	MO181030061/0 In stock	Cable. Thread Engine Brake Both ends with "S" shape	£13.31 £11.09
4	MO381000697/0 In stock	Cable Rear Drive	£20.27 £16.89
5	MO381003297/1 In stock	Driving Lever From 01-9-2004	£22.10 £18.42
6	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
7	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
