QUATTRO 22S V 4in1 - 2017 - 294563827/AT7 - Atco Rotary Mower Grasscatcher Diagram

Description

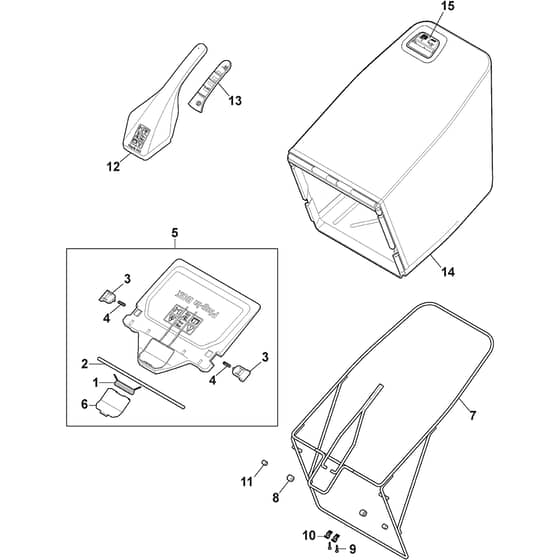

Atco QUATTRO 22S V 4in1 Parts Diagram

Product Name - Quattro 22S V 4in1

Model Year - 2017

Model Type - MP2 554 SVQ

Art.N - 294563827/AT7

Engine Model - B&S 675 EXi Series

	Part No.	Details
1	MO122450485/0 Available to backorder	Spring	£2.24 £1.87
2	MO122517884/0 Available to backorder	Pin	£5.06 £4.22
3	MO322109579/0 Available to backorder	Support	£1.55 £1.29
4	MO122450482/0 Available to backorder	Spring	£1.39 £1.16
5	MO381008155/1 Available to backorder	Stone Guard. Black From 01-9-2016	£30.98 £25.82
7	MO181006431/0 Available to backorder	Textile Grasscatcher Frame From 01-9-2019	£63.20 £52.67
8	MO322109582/0 Available to backorder	Protection	£2.12 £1.77
9	MO112728713/0 Available to backorder	Screw	£1.46 £1.22
10	MO325774220/0 Available to backorder	Bracket	£1.63 £1.36
11	MO322109581/0 Available to backorder	Protection	£2.12 £1.77
12	MO322393757/0 Available to backorder	Handle Red	£12.82 £10.68
13	MO322394545/0 Available to backorder	Lower Handgrip Black	£4.24 £3.53
14	MO181102389/0 Available to backorder	Fabric Box White with Mountfield Black Logo	£77.40 £64.50
15	MO322486424/0 Available to backorder	Grasscatcher Full Indicator [Grey]	£1.97 £1.64
