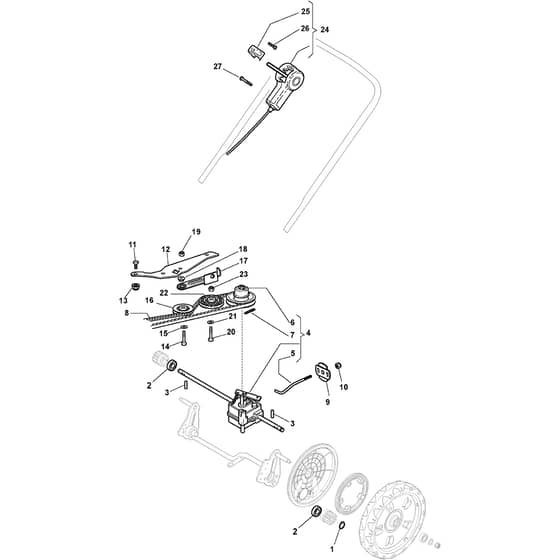

QUATTRO 20SE 4SPEED - 2012-2013 - 299533527/AT2 - Atco Rotary Mower Transmission Diagram

Name: QUATTRO 20SE 4SPEED - 2012-2013 - 299533527/AT2 - Atco Rotary Mower Transmission Diagram
SKU: quattro_20se_4speed_299533527_at2_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 20SE 4SPEED - 2012-2013 - 299533527/AT2 - Atco Rotary Mower Transmission Diagram

Description

Atco QUATTRO 20SE 4SPEED Parts Diagram

Product Name - Quattro 20SE 4 Speed

Model Year - 2012-2013

Model Type - NTL 534 W TR/E 4S

Art.N - 299533527/AT2

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
3	MO122753000/0 In stock	Pin	£1.55 £1.29
4	MO181003096/3 Available to backorder	Gear Box From 01-9-2010	£147.80 £123.17
4	MO181003102/1 Available to backorder	Gear Box Only for Models with "Flat" handle	£154.86 £129.05
5	MO122033285/0 Available to backorder	Adjustment Rod	£6.90 £5.75
6	MO122601925/0 Available to backorder	Pulley To 31-8-2013	£66.16 £55.13
6	MO122601932/0 In stock	Pulley From 01-9-2013	£57.43 £47.86
7	MO112645700/0 Available to backorder	Elastic Pin	£1.55 £1.29
8	MO135064010/0 In stock	Belt	£14.06 £11.72
9	MO322675113/0 Available to backorder	Washer	£1.97 £1.64
11	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
12	MO322806625/2 Available to backorder	Support	£5.48 £4.57
13	MO112292102/0 In stock	Nut	£1.69 £1.41
14	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
16	MO122601915/0 In stock	Pulley	£21.40 £17.83
17	MO322806623/0 Available to backorder	Pulley Support	£4.22 £3.52
18	MO122671656/0 Available to backorder	Washer	£7.31 £6.09
20	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
21	MO112523050/0 In stock	Washer	£1.55 £1.29
22	MO122601914/0 In stock	Pulley	£21.54 £17.95
23	MO112154510/0 In stock	Nut	£1.55 £1.29
24	MO381007110/0 Available to backorder	Speed Control Ass.Y	£49.26 £41.05
25	MO322399809/0 Available to backorder	Knob	£1.55 £1.29
26	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
27	MO112728702/0 Available to backorder	Self-Tap Screw Pt Torx Wn1451 K50 X 40	£1.55 £1.29
