QUATTRO 19SH VSC 4in1 - 2021 - 294513537/AT1 - Atco Rotary Mower Carburettor Diagram

Name: QUATTRO 19SH VSC 4in1 - 2021 - 294513537/AT1 - Atco Rotary Mower Carburettor Diagram
SKU: quattro_19sh_vsc_4in1_294513537_at1_carburettor-group
Price: 1.91 GBP
Availability: InStock

Part No. quattro_19sh_vsc_4in1_294513537_at1_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19SH VSC 4in1 - 2021 - 294513537/AT1 - Atco Rotary Mower Carburettor Diagram

Description

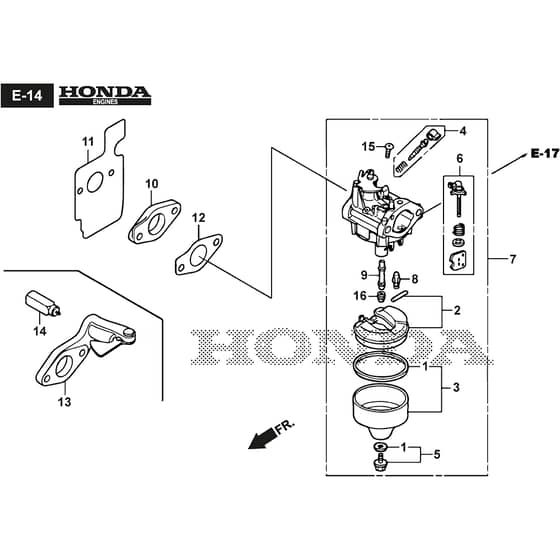

Atco QUATTRO 19SH VSC 4in1 Parts Diagram

Product Name - Quattro 19SH VSC 4in1

Model Year - 2021

Model Type - MP2 504 SVEQ

Art.N - 294513537/AT1

Engine Model - GCVxe170 OHV Autochoke

	Part No.	Details
1	HP16010-Z9L-811 In stock	Gasket Set	£3.95 £3.29
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
3	HP16015-Z9L-811 Available to backorder	Chamber Set. Float	£51.25 £42.71
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
5	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
6	HP16044-Z9L-811 Available to backorder	Choke Set	£25.91 £21.59
7	HP16100-Z9L-811 In stock	Carburetor Assy. (Bb76J A)	£126.00 £105.00
8	HP16155-ZM0-013 In stock	Valve. Float	£38.47 £32.06
9	HP16166-Z9L-811 Available to backorder	Nozzle. Main	£34.03 £28.36
11	HP16212-Z9L-000 In stock	Packing. Insulator	£9.95 £8.29
12	HP16221-Z9L-000 In stock	Packing. Carburetor	£2.29 £1.91
13	HP16600-Z9L-000 In stock	Control Assy. Choke	£65.05 £54.21
14	HP16620-Z9L-003 In stock	Thermowax Assy.	£41.82 £34.85
15	HP93500-050-060H Available to backorder	Screw. Pan. 5X6	£2.32 £1.93
