QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Handle Diagram

Name: QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Handle Diagram
SKU: quattro_19sh_v_4in1_294513837_at9_handle-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Handle Diagram

Description

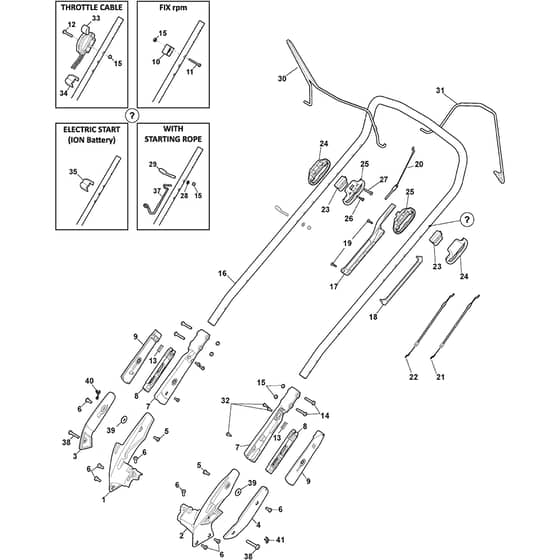

Atco QUATTRO 19SH V 4in1 Parts Diagram

Product Name - Quattro 19SH V 4in1

Model Year - 2019-2025

Model Type - MP2 504 SVQ

Art.N - 294513837/AT9

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005219/1	Right Bracket	Out of stock	£32.16 £26.80
2	MO381005221/1	Left Bracket	Out of stock	£36.56 £30.47
3	MO381005239/0	Cover. Right	Out of stock	£15.72 £13.10
4	MO381005241/0	Cover. Left	Out of stock	£15.72 £13.10
5	MO122517885/0	Pin	Out of stock	£3.12 £2.60
6	MO112735664/0	Screw	Out of stock	£1.49 £1.24
7	MO381005243/0	External Guide	Out of stock	£21.60 £18.00
8	MO322246106/0	Cursor	Out of stock	£12.46 £10.38
9	MO381005245/0	Internal Guide	Out of stock	£14.76 £12.30
10	MO322551684/0	Cable Holder Ø25	Out of stock	£8.53 £7.11
11	MO112727784/0	Screw for FIX rpm	Out of stock	£1.36 £1.13
12	MO112727786/0	Screw for Throttle Cable	Out of stock	£1.90 £1.58
13	MO125430202/1	Spring	Out of stock	£1.63 £1.36
14	MO112727799/0	Screw	Out of stock	£1.75 £1.46
15	MO112154510/0	Nut	In stock	£1.63 £1.36
16	MO381007595/1	Handle. Upper Part	Out of stock	£82.62 £68.85
17	MO322806652/0	Internal Support. Black	Out of stock	£6.23 £5.19
18	MO322806653/0	External Support. Black	Out of stock	£4.87 £4.06
19	MO112728713/0	Screw	Out of stock	£1.36 £1.13
20	MO381030123/0	Cable Com. Cursor. Assy	Out of stock	£9.24 £7.70
21	MO381030118/0	Clutch Cable	In stock	£18.36 £15.30
22	MO181030070/0	Cable. Thread Engine Brake	Out of stock	£14.28 £11.90
23	MO322394544/0	Lever. Black	Out of stock	£2.84 £2.37
24	MO322722839/0	External Protection. Black	Out of stock	£3.24 £2.70
25	MO322722838/0	Internal Protection. Black	Out of stock	£3.24 £2.70
26	MO112728696/0	Screw	Out of stock	£1.49 £1.24
27	MO112728705/0	Screw	Out of stock	£2.58 £2.15
28	MO112521330/0	Washer	Out of stock	£1.49 £1.24
29	MO122430313/0	Guide Spring For models without electric start	Out of stock	£3.60 £3.00
30	MO181003437/0	Lever. Engine Brake Black	Out of stock	£37.08 £30.90
31	MO181003438/1	Drive Control Lever. Black	Out of stock	£32.51 £27.09
32	MO112735651/0	Screw	Out of stock	£1.49 £1.24
33	MO181005541/0	Throttle Cable	In stock	£25.44 £21.20
35	MO118390020/0	Conduit Clip for electric start engine (ION Battery)	In stock	£1.75 £1.46
37	MO122430318/0	Guide Spring For models without electric start	In stock	£10.68 £8.90
38	MO112735660/0	Screw	Out of stock	£1.49 £1.24
39	MO9694-0001-00	Washer	Out of stock	£1.49 £1.24
40	MO122430323/0	Spring	Out of stock	£2.58 £2.15
