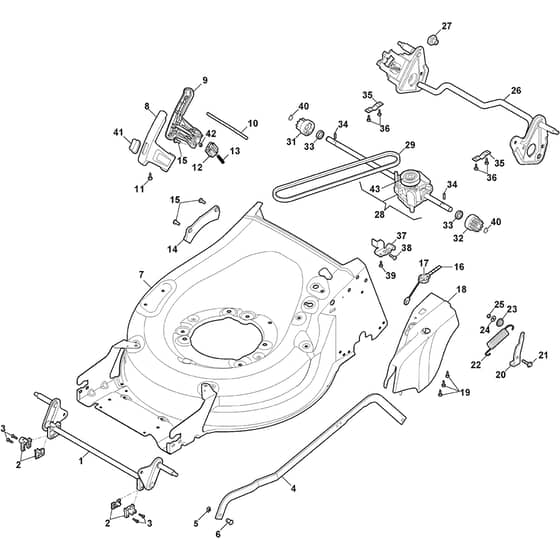

QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Deck Diagram

QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Deck Diagram
QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Deck Diagram

Description

Atco QUATTRO 19SH V 4in1 Parts Diagram

Product Name - Quattro 19SH V 4in1

Model Year - 2019-2025

Model Type - MP2 504 SVQ

Art.N - 294513837/AT9

Engine Model - GCVx170 OHV Autochoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Front Wheel Axle From S.N 20CA2WBH016180 MO381302901/1
Front Wheel Axle From S.N 20CA2WBH016180
 Out of stock
£27.08 £22.57

  2 Support MO322785305/1
Support
 Out of stock
£2.58 £2.15

  4 Adjustment Rod From S.N 20CA2WBH010963 MO322869697/1
Adjustment Rod From S.N 20CA2WBH010963
 Out of stock
£44.70 £37.25

  5 Plate MO112436050/0
Plate
 In stock
£1.75 £1.46

  6 Pin MO122519823/0
Pin
 In stock
£2.17 £1.81

  7 Grey Deck Side Discharge From 01-9-2018 MO381004854/0
Grey Deck Side Discharge From 01-9-2018
 Out of stock
£209.94 £174.95

  7 Grey Deck Side Discharge To 31-8-2018 MO381004836/0
Grey Deck Side Discharge To 31-8-2018
 Out of stock
£181.50 £151.25

  8 Upper Handle MO322394534/0
Upper Handle
 In stock
£3.84 £3.20

  9 Lower Handgrip Black and Black MO322394555/0
Lower Handgrip Black and Black
 In stock
£5.28 £4.40

  10 Rod MO322869723/0
Rod
 In stock
£1.63 £1.36

  11 Screw MO112728697/0
Screw
 In stock
£1.63 £1.36

  12 Slide MO322109580/0
Slide
 In stock
£5.76 £4.80

  13 Spring MO122450484/0
Spring
 In stock
£1.63 £1.36

  14 Sector. Height Adjustment MO322735592/0
Sector. Height Adjustment
 Out of stock
£10.68 £8.90

  16 Position Plate MO322602031/0
Position Plate
 Out of stock
£2.04 £1.70

  17 Lens MO322602027/0
Lens
 Out of stock
£1.75 £1.46

  19 Screw MO112728904/0
Screw
 Out of stock
£1.63 £1.36

  20 Bracket MO322778475/0
Bracket
 Out of stock
£2.70 £2.25

  21 Screw MO112815270/0
Screw
 Out of stock
£1.49 £1.24

  22 Spring MO122450480/0
Spring
 Out of stock
£2.30 £1.92

  23 Pin MO122517873/0
Pin
 Out of stock
£2.84 £2.37

  24 Washer MO112523040/0
Washer
 In stock
£1.63 £1.36

  25 Nut MO112154510/0
Nut
 In stock
£1.63 £1.36

  26 Rear Wheel Axle From S.N 20BA2WBH093246 MO381302905/1
Rear Wheel Axle From S.N 20BA2WBH093246
 Out of stock
£56.88 £47.40

  26 Rear Wheel Axle To S.N 20BA2WBH093245 MO381302905/0
Rear Wheel Axle To S.N 20BA2WBH093245
 Out of stock
£55.86 £46.55

  27 Brass MO322038407/0
Brass
 Out of stock
£1.49 £1.24

  28 Gear Box Pulley included MO181003119/0
Gear Box Pulley included
 Out of stock
£190.68 £158.90

  29 Belt MO135064393/0
Belt
 In stock
£23.64 £19.70

  31 Right Pinion Plastic MO122570110/1
Right Pinion Plastic
 In stock
£6.72 £5.60

  32 Left Pinion Plastic MO122570120/1
Left Pinion Plastic
 In stock
£6.72 £5.60

  33 Bearing MO119216035/0
Bearing
 In stock
£3.24 £2.70

  34 Pin MO122753000/0
Pin
 In stock
£1.63 £1.36

  35 Plate MO322545147/0
Plate
 Out of stock
£1.90 £1.58

  37 Plate MO322778491/0
Plate
 Out of stock
£5.54 £4.62

  38 Screw MO112735664/0
Screw
 In stock
£1.49 £1.24

  39 Screw MO9943-0516-16
Screw
 In stock
£1.33 £1.11

  40 Seeger MO112608600/0
Seeger
 In stock
£1.63 £1.36

  41 Button. Black MO322602032/0
Button. Black
 Out of stock
£1.36 £1.13

  42 Nut MO112154330/0
Nut
 Out of stock
£1.49 £1.24

  43 MO118811482/0
Out of stock
£66.35 £55.29


Description

Atco QUATTRO 19SH V 4in1 Parts Diagram

Product Name - Quattro 19SH V 4in1

Model Year - 2019-2025

Model Type - MP2 504 SVQ

Art.N - 294513837/AT9

Engine Model - GCVx170 OHV Autochoke
