QUATTRO 19SH V 4in1 - 2019-2025 - 294513837/AT9 - Atco Rotary Mower Controls Diagram

Description

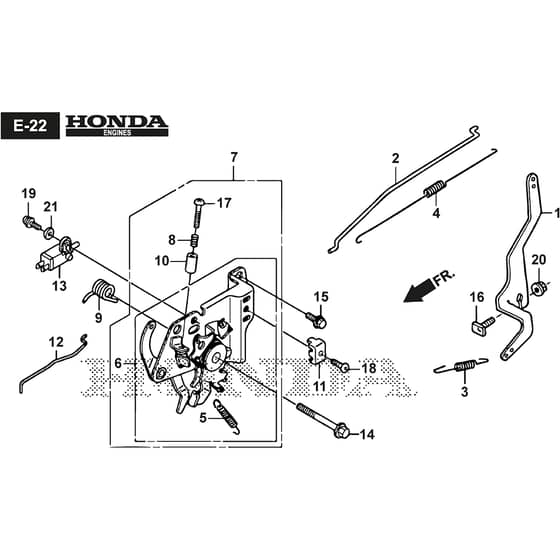

Atco QUATTRO 19SH V 4in1 Parts Diagram

Product Name - Quattro 19SH V 4in1

Model Year - 2019-2025

Model Type - MP2 504 SVQ

Art.N - 294513837/AT9

Engine Model - GCVx170 OHV Autochoke

	Part No.	Details
1	HP16551-Z9L-000 Available to backorder	Arm. Governor	£10.46 £8.72
2	HP16555-Z9L-000 Available to backorder	Rod. Governor	£10.48 £8.73
3	HP16561-Z9P-000 In stock	Spring. Governor	£8.50 £7.08
4	HP16562-Z9L-000 Available to backorder	Spring. Throttle Return	£4.50 £3.75
16	HP90015-ZE5-010 Available to backorder	Bolt. Governor Arm	£3.35 £2.79
