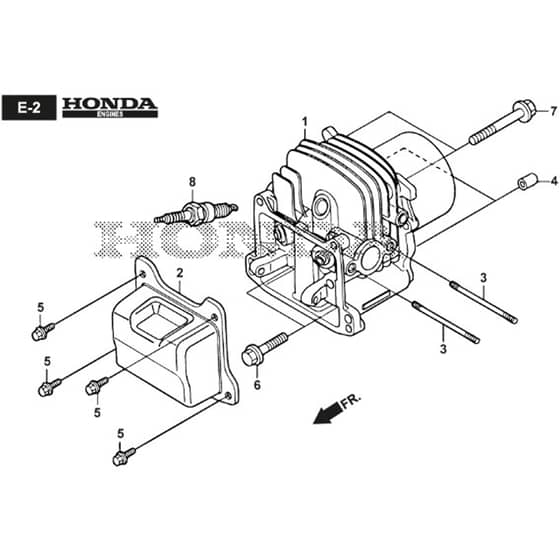

QUATTRO 19SH 4in1 - 2019-2024 - 294502837/AT9 - Atco Rotary Mower Cylinder Head Diagram

Name: QUATTRO 19SH 4in1 - 2019-2024 - 294502837/AT9 - Atco Rotary Mower Cylinder Head Diagram
SKU: quattro_19sh_4in1_294502837_at9_cylinder_head-group
Price: 0.75 GBP
Availability: InStock

Part No. quattro_19sh_4in1_294502837_at9_cylinder_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19SH 4in1 - 2019-2024 - 294502837/AT9 - Atco Rotary Mower Cylinder Head Diagram

Description

Atco QUATTRO 19SH 4in1 Parts Diagram

Product Name - QUATTRO 19SH 4in1

Model Year - 2019-2024

Model Type - MP1504SQ

Art.N - 294502837/AT9

Engine Model -

	Part No.	Details
1	HP12100-Z9P-405 Available to backorder	Cylinder Comp.	£264.48 £220.40
2	HP12311-Z9L-000 In stock	Cover. Head	£42.95 £35.79
3	HP90043-Z9L-000 Available to backorder	Bolt. Stud. 6X82 (Ct200)	£6.58 £5.48
4	HP94301-08140 Available to backorder	Dowel Pin. 8X14	£3.06 £2.55
5	HP95701-0601408 Available to backorder	Bolt. Flange. 6X14	£0.90 £0.75
6	HP95701-0802508 Available to backorder	Bolt. Flange. 8X25	£2.03 £1.69
7	HP95701-0804008 In stock	Bolt. Flange. 8X40	£2.03 £1.69
8	2135 In stock	Spark Plug [Bpr5Es-Ngk]	£2.78 £2.32
