QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Piston Diagram

Name: QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Piston Diagram
SKU: quattro_19sh_4in1_294506837_at5_piston-group
Price: 1.56 GBP
Availability: InStock

Part No. quattro_19sh_4in1_294506837_at5_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

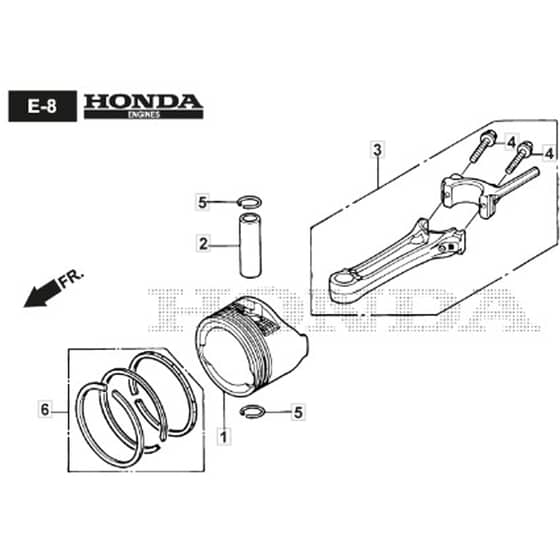

QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Piston Diagram

Description

Atco QUATTRO 19SH 4in1 Parts Diagram

Product Name - QUATTRO 19SH 4in1

Model Year - 2015-2018

Model Type - MP1504SQ

Art.N - 294506837/AT5

Engine Model -

	Part No.	Details
1	HP13101-Z8A-900 In stock	Piston	Was £45.78 £38.15 Special Price £32.96 £27.47
2	HP13111-Z8B-000 Available to backorder	Pin. Piston	£13.32 £11.10
3	HP13200-Z0J-000 Available to backorder	Rod Assy. Connecting	£51.79 £43.16
4	HP90006-Z8B-000 Available to backorder	Bolt. Connecting Rod	£4.13 £3.44
5	HP90551-ZE0-000 Available to backorder	Clip. Piston Pin. 13mm	£1.87 £1.56
6	HP13010-Z0L-014 Available to backorder	Ring Set. Piston (Std.) (Teikoku)	£32.53 £27.11
