QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Flywheel Diagram

Name: QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Flywheel Diagram
SKU: quattro_19sh_4in1_294506837_at5_flywheel-group
Price: 0.74 GBP
Availability: InStock

Part No. quattro_19sh_4in1_294506837_at5_flywheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19SH 4in1 - 2015-2018 - 294506837/AT5 - Atco Rotary Mower Flywheel Diagram

Description

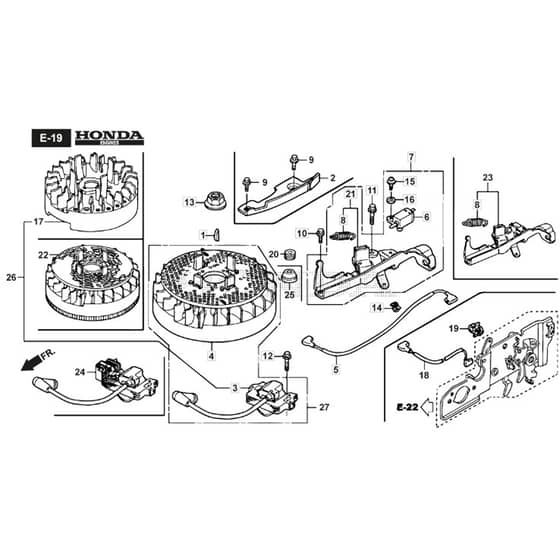

Atco QUATTRO 19SH 4in1 Parts Diagram

Product Name - QUATTRO 19SH 4in1

Model Year - 2015-2018

Model Type - MP1504SQ

Art.N - 294506837/AT5

Engine Model -

	Part No.	Details
1	HP13331-Z8B-900 Available to backorder	Key. Special Woodruff. 25X18	£1.93 £1.61
3	HP30500-ZL8-014 Available to backorder	Coil Assy. Ignition (Tec) (Use For F.W	£81.48 £67.90
4	HP31105-ZM0-000 Available to backorder	Flywheel Assy. (Tec) (Use For Ign. Coil	£51.52 £42.93
5	HP32195-Z0L-000 Available to backorder	Cord. Stop Switch	£11.09 £9.24
6	HP35120-ZM0-003 Available to backorder	Switch Assy. Engine Stop (N.C)	£12.23 £10.19
7	HP75100-Z0L-901 Available to backorder	Brake Assy.	£51.14 £42.62
8	HP75113-ZM0-000 Available to backorder	Spring. Brake Lever	£2.72 £2.27
10	HP90014-952-000 Available to backorder	Bolt. Flange. 6X14 (Ct200)	£3.77 £3.14
12	HP90018-ZE1-000 Available to backorder	Bolt. Flange. 6X23 (Ct200)	£2.96 £2.47
13	HP90201-Z0T-800 Available to backorder	Nut. Special. 14mm	£7.10 £5.92
14	HP90681-959-003 Available to backorder	Clip A. Cable (Nifco) (3.8mm Black)	£0.97 £0.81
15	HP93892-0401200 Available to backorder	Screw-Washer. 4X12	£1.51 £1.26
16	HP94103-040-00 Available to backorder	Washer. Plain. 4mm	£0.89 £0.74
21	HP75110-Z0L-901 Available to backorder	Brake Sub Assy.	£51.14 £42.62
