Description

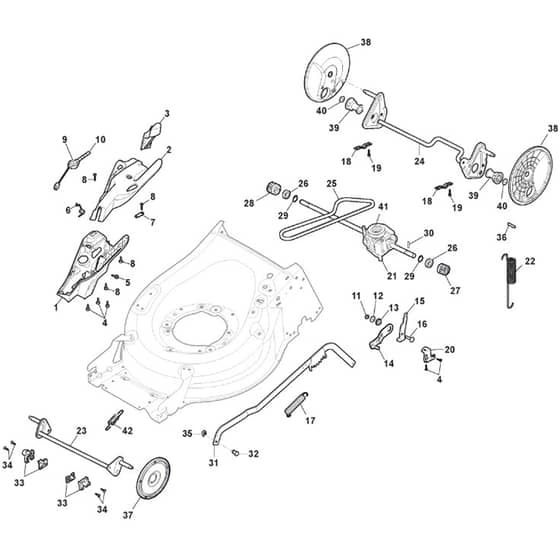

Atco QUATTRO 19SE 4in1 Parts Diagram

Product Name - QUATTRO 19SE 4in1

Model Year - 2016-2020

Model Type - MP1504SQE

Art.N - 294502527/AT6

Engine Model -

Ref. Img. Part No. Details
  1 Lower Cover
Lower Cover
MO322055262/0 Out of stock
Lower Cover
£7.18 £5.98

  2 Upper Cover
Upper Cover
MO322055263/0 Out of stock
Upper Cover
£7.32 £6.10

  3 Button
Button
MO322602026/0 Out of stock
Button
£3.79 £3.16

  4 Screw
Screw
MO112728904/0 Out of stock
Screw
£1.63 £1.36

  5 Screw
Screw
MO125943004/0 Out of stock
Screw
£1.75 £1.46

  6 Spring
Spring
MO122450477/0 Out of stock
Spring
£1.75 £1.46

  7 Plate
Plate
MO322981471/1 Out of stock
Plate
£1.49 £1.24

  9 Lens
Lens
MO322602027/0 Out of stock
Lens
£1.75 £1.46

  10 Visualizer
Visualizer
MO322602028/0 Out of stock
Visualizer
£1.49 £1.24

  11 Nut
Nut
MO112154510/0 In stock
Nut
£1.63 £1.36

  12 Washer
Washer
MO112523040/0 In stock
Washer
£1.63 £1.36

  13 Pin
Pin
MO122517873/0 Out of stock
Pin
£2.84 £2.37

  14 Lever. Height Adjustment From 01-9-2017
Lever. Height Adjustment From 01-9-2017
MO381003475/2 Out of stock
Lever. Height Adjustment From 01-9-2017
£8.33 £6.94

  15 Bracket
Bracket
MO322778475/0 Out of stock
Bracket
£2.70 £2.25

  16 Screw
Screw
MO112815270/0 Out of stock
Screw
£1.49 £1.24

  17 Spring
Spring
MO122450480/0 Out of stock
Spring
£2.30 £1.92

  18 Plate
Plate
MO322545152/0 Out of stock
Plate
£1.63 £1.36

  20 Bracket From 01-9-2018
Bracket From 01-9-2018
MO322778473/1 Out of stock
Bracket From 01-9-2018
£2.04 £1.70

  21 Gear Box
Gear Box
MO181003114/0 Out of stock
Gear Box
£105.48 £87.90

  22 Spring
Spring
MO122450478/0 Out of stock
Spring
£8.53 £7.11

  23 Front Wheel Axle To S.N 20EA2WBH075267
Front Wheel Axle To S.N 20EA2WBH075267
MO381302881/0 Out of stock
Front Wheel Axle To S.N 20EA2WBH075267
£33.86 £28.22

  23 Front Wheel Axle From S.N 20EA2WBH075268
Front Wheel Axle From S.N 20EA2WBH075268
MO381302881/1 Out of stock
Front Wheel Axle From S.N 20EA2WBH075268
£28.44 £23.70

  24 Rear Wheel Axle From S.N 20EA2WBH075268
Rear Wheel Axle From S.N 20EA2WBH075268
MO381302891/1 Out of stock
Rear Wheel Axle From S.N 20EA2WBH075268
£28.31 £23.59

  25 Belt
Belt
MO135063900/0 In stock
Belt
£8.40 £7.00

  26 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.24 £2.70

  27 Right Pinion Plastic
Right Pinion Plastic
MO122570110/1 In stock
Right Pinion Plastic
£6.72 £5.60

  28 Left Pinion Plastic
Left Pinion Plastic
MO122570120/1 In stock
Left Pinion Plastic
£6.72 £5.60

  29 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.63 £1.36

  30 Pin
Pin
MO122753000/0 In stock
Pin
£1.63 £1.36

  31 Wheels Control Rod To S.N 20EA2WBH075267
Wheels Control Rod To S.N 20EA2WBH075267
MO381002047/0 Out of stock
Wheels Control Rod To S.N 20EA2WBH075267
£58.25 £48.54

  31 Wheels Control Rod From S.N 20EA2WBH075268
Wheels Control Rod From S.N 20EA2WBH075268
MO381002047/1 Out of stock
Wheels Control Rod From S.N 20EA2WBH075268
£46.06 £38.38

  32 Pin
Pin
MO122519820/0 Out of stock
Pin
£2.04 £1.70

  33 Support From 01-9-2015
Support From 01-9-2015
MO322785305/1 In stock
Support From 01-9-2015
£2.58 £2.15

  34 Screw
Screw
MO112728697/0 In stock
Screw
£1.63 £1.36

  35 Plate
Plate
MO112436050/0 In stock
Plate
£1.75 £1.46

  37 Protection. Wheel
Protection. Wheel
MO322600247/0 Out of stock
Protection. Wheel
£4.33 £3.61

  38 Protection. Wheel
Protection. Wheel
MO322600205/1 Out of stock
Protection. Wheel
£3.65 £3.04

  39 Bushing
Bushing
MO322042068/0 Out of stock
Bushing
£2.58 £2.15

  40 Washer
Washer
MO112521371/0 Out of stock
Washer
£1.49 £1.24

  41 Pulley
Pulley
MO122601909/0 In stock
Pulley
£5.16 £4.30

  42 Spring Front Axle
Spring Front Axle
MO122450481/0 Out of stock
Spring Front Axle
£2.98 £2.48


Description

Atco QUATTRO 19SE 4in1 Parts Diagram

Product Name - QUATTRO 19SE 4in1

Model Year - 2016-2020

Model Type - MP1504SQE

Art.N - 294502527/AT6

Engine Model -
