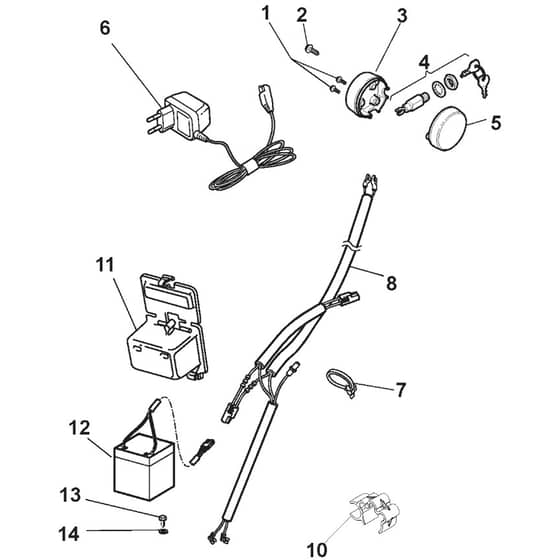

QUATTRO 19SE 4in1 - 2015 - 294506527/AT5 - Atco Rotary Mower Controls Diagram

Name: QUATTRO 19SE 4in1 - 2015 - 294506527/AT5 - Atco Rotary Mower Controls Diagram
SKU: quattro_19se_4in1_294506527_at5_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19SE 4in1 - 2015 - 294506527/AT5 - Atco Rotary Mower Controls Diagram

Description

Atco QUATTRO 19SE 4in1 Parts Diagram

Product Name - QUATTRO 19SE 4in1

Model Year - 2015

Model Type - MP1504SQE

Art.N - 294506527/AT5

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728702/0 Available to backorder	Screw	£1.55 £1.29
3	MO322722801/0 Available to backorder	Starting Block Outer Half-Bearing	£1.82 £1.52
4	MO118450051/0 Available to backorder	Switch	£18.59 £15.49
5	MO322722800/0 Available to backorder	Starting Block Inner Half-Bearing	£10.49 £8.74
6	MO118204137/1 Available to backorder	Battery Charger UK plug with B&S IS From 01-9-2017	£82.36 £68.63
6	MO118204120/1LC In stock	Battery Charger UK plug From 01-9-2015	£27.04 £22.53
6	MO118204137/0 Available to backorder	Battery Charger UK plug with B&S IS To 31-8-2017	£99.95 £83.29
7	MO133320022/0 Available to backorder	Fastpoint Clamp From 01-9-2016	£1.55 £1.29
8	MO118204196/0 Available to backorder	Cable. Start For B&S Engines	£54.90 £45.75
10	MO118390021/0 Available to backorder	Conduit Clip	£1.55 £1.29
11	MO322109533/0 Available to backorder	Battery Holder	£14.22 £11.85
12	MO118120064/0 In stock	Battery	£44.70 £37.25
13	MO112728706/0 In stock	Screw	£1.55 £1.29
14	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
