QUATTRO 19S 4in1 - 2015-2022 - 294506827/AT5 - Atco Rotary Mower Guards Diagram

Name: QUATTRO 19S 4in1 - 2015-2022 - 294506827/AT5 - Atco Rotary Mower Guards Diagram
SKU: quattro_19s_4in1_294506827_at5_guards-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 19S 4in1 - 2015-2022 - 294506827/AT5 - Atco Rotary Mower Guards Diagram

Description

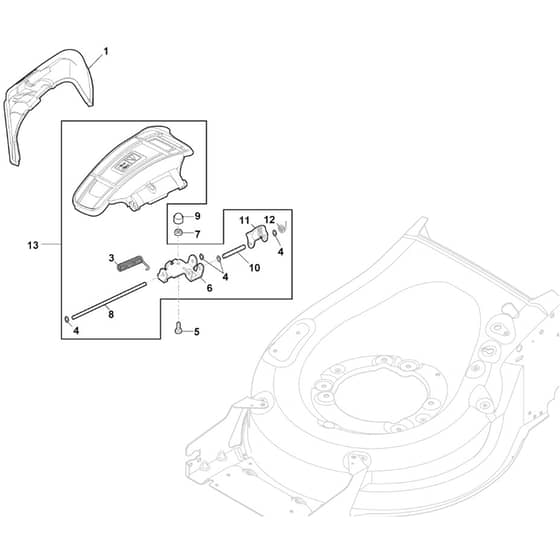

Atco QUATTRO 19S 4in1 Parts Diagram

Product Name - QUATTRO 19S 4in1

Model Year - 2015-2022

Model Type - MP1504SQ

Art.N - 294506827/AT5

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322108315/0 In stock	Conveyor	£11.82 £9.85
3	MO122450456/1 Available to backorder	Spring	£3.24 £2.70
4	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
5	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
6	MO322806659/0 Available to backorder	Fulcrum Pin	£4.97 £4.14
7	MO112154510/0 In stock	Nut	£1.55 £1.29
8	MO122517869/1 Available to backorder	Pin	£3.79 £3.16
9	MO118203853/0 Available to backorder	Cap	£2.68 £2.23
10	MO122517876/0 Available to backorder	Pin	£1.40 £1.17
11	MO322783013/0 Available to backorder	Safety Button	£2.04 £1.70
12	MO122450493/0 Available to backorder	Spring	£1.33 £1.11
13	MO381008162/1 Available to backorder	Stone Guard Side Discharge Assy	£19.01 £15.84
