QUATTRO 16SH 4in1 - 2021 - 2L0432837/AT1 - Atco Rotary Mower Height Adj Diagram

Name: QUATTRO 16SH 4in1 - 2021 - 2L0432837/AT1 - Atco Rotary Mower Height Adj Diagram
SKU: quattro_16sh_4in1_2l0432837_at1_height_adj-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

QUATTRO 16SH 4in1 - 2021 - 2L0432837/AT1 - Atco Rotary Mower Height Adj Diagram

Description

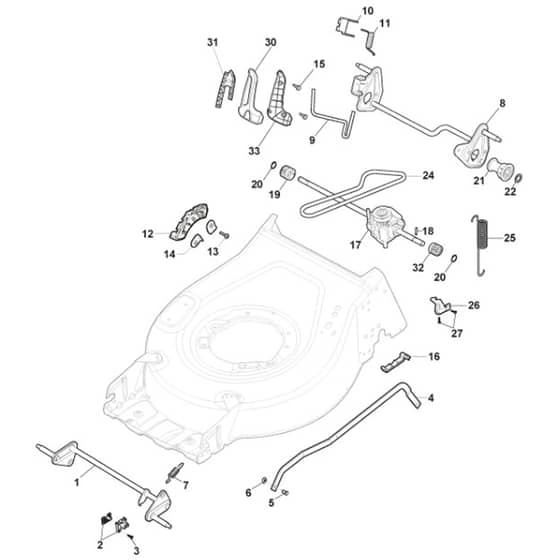

Atco QUATTRO 16SH 4in1 Parts Diagram

Product Name - QUATTRO 16SH 4in1

Model Year - 2021

Model Type - CP1434SQ

Art.N - 2L0432837/AT1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302937/1 Available to backorder	Axle. Front Wheels From S.N 20BA2WBH000001	£64.75 £53.96
1	MO381302937/0 Available to backorder	Axle. Front Wheels	£27.74 £23.12
2	MO322785305/1 In stock	Support	£2.68 £2.23
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869731/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH076123	£18.16 £15.13
5	MO122519823/0 In stock	Pin	£2.26 £1.88
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302851/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH045271	£45.04 £37.53
9	MO322321553/0 Available to backorder	Lever. Height Adjustment	£3.10 £2.58
10	MO322557179/0 Available to backorder	Plate	£2.40 £2.00
11	MO122446198/1 Available to backorder	Spring	£1.69 £1.41
12	MO322735608/0 Available to backorder	Sector. Height Adjustment	£2.12 £1.77
13	MO112727807/0 In stock	Screw	£1.55 £1.29
14	MO322545232/1 Available to backorder	Plate From S.N 19BA2WBH044678 To S.N 20DA2WBH028504	£1.66 £1.38
14	MO322545232/2 Available to backorder	Plate From S.N 20DA2WBH028505	£1.55 £1.29
15	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
16	MO322785500/0 In stock	Support	£1.82 £1.52
17	MO181003114/0 Available to backorder	Gear Box	£124.58 £103.82
18	MO122753000/0 In stock	Pin	£1.55 £1.29
19	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
20	MO112608600/0 In stock	Seeger	£1.55 £1.29
21	MO322042066/0 Available to backorder	Bushing	£1.82 £1.52
22	MO112521371/0 Available to backorder	Washer	£1.55 £1.29
24	MO135063710/0 In stock	Belt	£8.48 £7.07
25	MO122430254/0 In stock	Spring	£4.08 £3.40
26	MO322778473/1 Available to backorder	Bracket	£2.12 £1.77
27	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
30	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
31	MO322394551/0 Available to backorder	Handgrip	£1.97 £1.64
32	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
33	MO322394559/0 Available to backorder	Lower H.Adj Knob Use 322394559.0	£2.12 £1.77
