QUATTRO 16S 4in1 - 2019-2020 - 2L0432827/AT9 - Atco Rotary Mower Handle Lower Diagram

Description

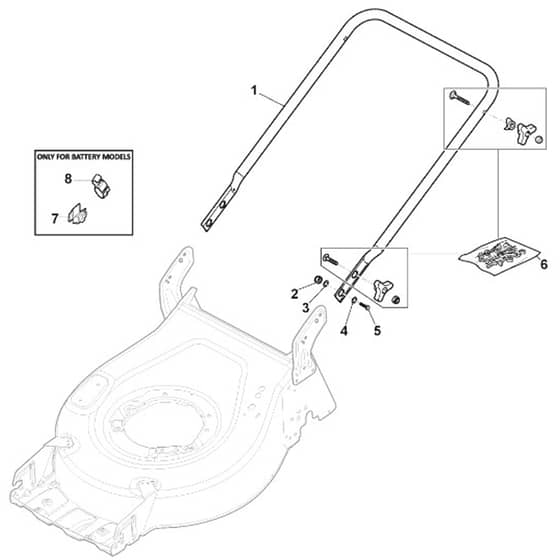

Atco QUATTRO 16S 4in1 Parts Diagram

Product Name - QUATTRO 16S 4in1

Model Year - 2019-2020

Model Type - CP1434SQ

Art.N - 2L0432827/AT9

Engine Model -

	Part No.	Details
1	MO381006785/0 In stock	Handle. Lower Part Black Black	£25.62 £21.35
2	MO112155000/0 In stock	Nut	£1.55 £1.29
3	MO112521350/0 In stock	Washer	£1.55 £1.29
4	MO112369500/0 In stock	Elastic Washer	£1.39 £1.16
5	MO112760605/0 In stock	Screw	£3.38 £2.82
6	MO381008691/0 In stock	Outfit. Screws Only with Black knob	£8.59 £7.16
7	MO133320504/0 Available to backorder	Fairlead Only for Battery Models	£1.97 £1.64
8	MO118390020/0 In stock	Cable Clip	£1.84 £1.53
22	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
24	MO135063710/0 In stock	Belt	£7.63 £6.36
25	MO122430254/0 In stock	Spring	£4.08 £3.40
26	MO322778473/1 Available to backorder	Bracket	£2.22 £1.85
27	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
30	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
31	MO322394551/0 In stock	Handgrip	£1.97 £1.64
32	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
33	MO322394559/0 Available to backorder	Lower H.Adj Knob Use 322394559.0	£2.12 £1.77
