QUATTRO 16 - 2017 - 295441027/AT4 - Atco Rotary Mower Height Adj Diagram

Description

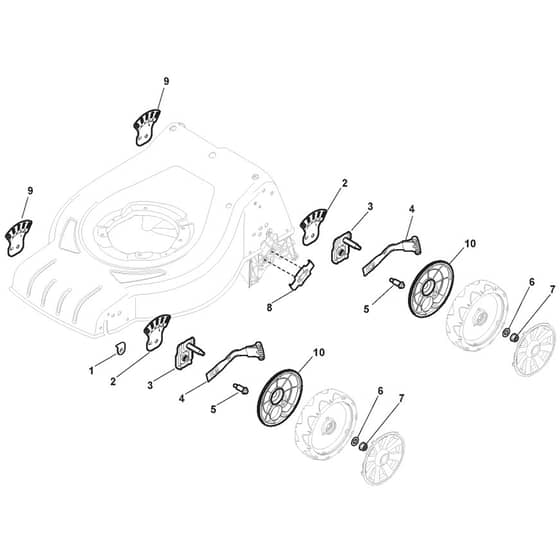

Atco QUATTRO 16 Parts Diagram

Product Name - QUATTRO 16

Model Year - 2017

Model Type - CS434

Art.N - 295441027/AT4

Engine Model -

	Part No.	Details
1	MO322545189/0 In stock	Plate	£1.55 £1.29
2	MO322735611/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH058856	£2.69 £2.24
2	MO322735597/1 Available to backorder	Sector. Height Adjustment From 01-9-2011 To S.N 20BA2WBH058855	£2.82 £2.35
3	MO381005159/0 Available to backorder	Wheel Support From S.N SK6614968 To S.N 19GA2WBH002978	£11.12 £9.27
3	MO381005265/0 Available to backorder	Wheel Support From S.N 20BA2WBH056550	£11.41 £9.51
3	MO381005253/0 Available to backorder	Wheel Support From S.N 20AA2WBH020538 To S.N 20BA2WBH056549	£11.12 £9.27
4	MO381003354/0 Available to backorder	Lever. Height Adjustment with Standard Black Knob	£6.90 £5.75
5	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
6	MO112521350/0 In stock	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO322545211/0 Available to backorder	Plate	£2.40 £2.00
9	MO322735595/1 Available to backorder	Sector. Height Adjustment From 01-9-2011 To S.N 20BA2WBH064329	£2.69 £2.24
9	MO322735609/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH064330	£2.69 £2.24
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£4.50 £3.75
