Qualcast Suffolk Punch 35S - F016L80401 - Main Assembly

Name: Qualcast Suffolk Punch 35S - F016L80401 - Main Assembly
SKU: suffolk_punch_35s_f016l80401_main_assy-group
Price: 0.66 GBP
Availability: InStock

Part No. suffolk_punch_35s_f016l80401_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Qualcast Suffolk Punch 35S - F016L80401 - Main Assembly

Description

Qualcast Suffolk Punch 35S

Article number: F016L80401

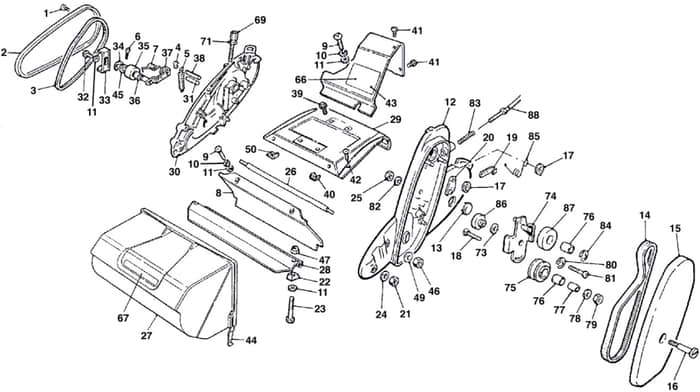

Main Assembly - Parts Diagram

	Part No.	Details
1	BQF016L35313 Available to backorder	Screw	£0.79 £0.66
3	5864 In stock	Belts	£4.40 £3.67
4	ALF016L66172 In stock	Holder	£3.66 £3.05
5	ALF016L08487 In stock	Spring	£8.20 £6.83
11	ALF016L35316 In stock	Washer 8.5mm	£3.52 £2.93
14	ALF016A58729 In stock	Drive Belt	£28.61 £23.84
17	ALF016T48549 In stock	Collar	£2.90 £2.42
21	BQF016L35314 Available to backorder	Nut 5/16	£1.18 £0.98
22	BQF016L23147 Available to backorder	Lower Knife	£1.31 £1.09
24	ALF016L35307 In stock	Spring Washer 5/16 Sw Se	£1.79 £1.49
28	ALF016L08780 In stock	Bottom Knife 14"	£195.40 £162.83
32	BQF016L18029 Available to backorder	Screw 1/4 Unc x 3/8	£0.79 £0.66
79	ALF016L35388 In stock	Lock Nut M6	£1.19 £0.99
80	ALF016L24960 In stock	Clip	£3.07 £2.56
84	ALF016L08585 In stock	Safety Clip 1/2"	£1.61 £1.34
