Qualcast Classic Petrol 43S - F016306842 - Rear Roller Assembly

Description

Qualcast Classic Petrol 43S

Article number: F016306842

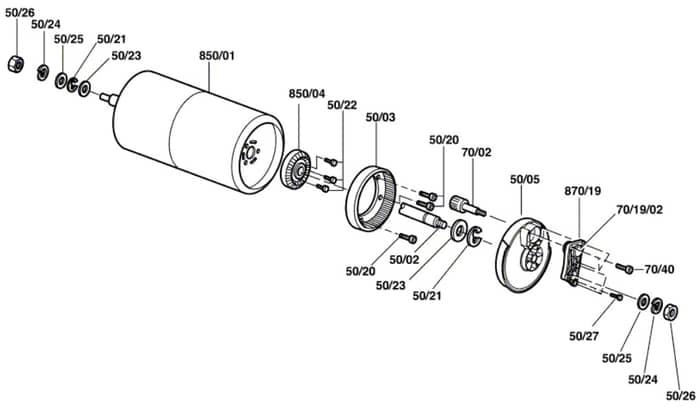

Rear Roller Assembly - Parts Diagram

	Part No.	Details
5002	ALF016A75328 Available to backorder	Spindle 17"	£23.51 £19.59
5003	ALF016A57635 In stock	Ring	£63.31 £52.76
5005	ALF016A75404 In stock	Cover Plate	£12.14 £10.12
5021	ALF016A58860 In stock	Collar	£2.76 £2.30
5022	ALF016A58178 In stock	Headpin	£2.76 £2.30
5023	ALF016A58577 Available to backorder	Washer M 20	£2.15 £1.79
5024	ALF016L35307 In stock	Spring Washer	£1.79 £1.49
5025	ALF016L35411 Available to backorder	Washer	£1.28 £1.07
5026	ALF016L35457 In stock	Nut	£2.76 £2.30
5027	ALF016T49429 In stock	Self-Tapping Screw 4x19mm	£2.39 £1.99
7002	ALF016A57698 In stock	Shaft	£26.47 £22.06
7040	ALF016A57756 In stock	Screw	£1.76 £1.47
85001	ALF016103215 Available to backorder	Roller 17"	£221.88 £184.90
85004	ALF016A75331 In stock	Storekeeper	£11.59 £9.66
87019	ALF016A75401 In stock	Bracket	£42.38 £35.32
701902	ALF016A57764 In stock	Bearing Bush	£11.34 £9.45
