Qualcast Classic Petrol 35S - F016305842 - Rear Roller Assembly

Name: Qualcast Classic Petrol 35S - F016305842 - Rear Roller Assembly
SKU: classic_petrol_35s_f016305842_rear_roller_assy-group
Price: 1.07 GBP
Availability: InStock

Part No. classic_petrol_35s_f016305842_rear_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Qualcast Classic Petrol 35S - F016305842 - Rear Roller Assembly

Description

Qualcast Classic Petrol 35S

Article number: F016305842

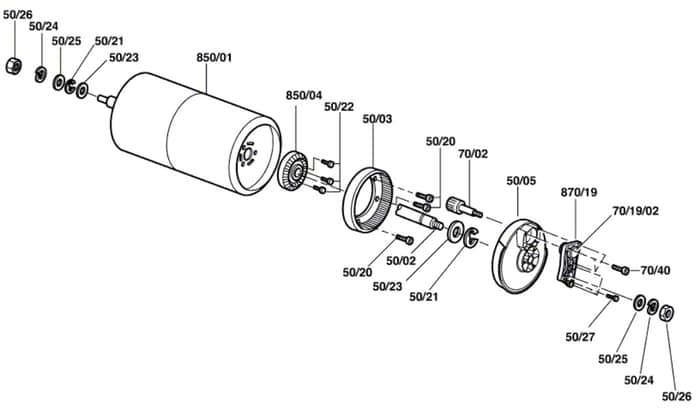

Rear Roller Assembly - Parts Diagram

	Part No.	Details
5002	ALF016A75327 In stock	Spindle 14"	£62.94 £52.45
5003	ALF016A57635 In stock	Ring	£63.31 £52.76
5005	ALF016A75404 In stock	Cover Plate	£12.14 £10.12
5021	ALF016A58860 In stock	Collar	£2.76 £2.30
5022	ALF016A58178 In stock	Headpin	£2.76 £2.30
5023	ALF016A58577 Available to backorder	Washer M 20	£2.15 £1.79
5024	ALF016L35307 In stock	Spring Washer	£1.79 £1.49
5025	ALF016L35411 Available to backorder	Washer	£1.28 £1.07
5026	ALF016L35457 In stock	Nut	£2.76 £2.30
5027	ALF016T49429 In stock	Self-Tapping Screw 4x19mm	£2.39 £1.99
7002	ALF016A57698 In stock	Shaft	£26.47 £22.06
7040	ALF016A57756 In stock	Screw	£1.76 £1.47
85001	ALA75428 Available to backorder	Roller	£361.08 £300.90
85004	ALF016A75331 In stock	Storekeeper	£11.59 £9.66
87019	ALF016A75401 In stock	Bracket	£42.38 £35.32
701902	ALF016A57764 In stock	Bearing Bush	£11.34 £9.45
