Qualcast Classic Petrol 35S - F016305842 - Cutter Assembly

Description

Qualcast Classic Petrol 35S

Article number: F016305842

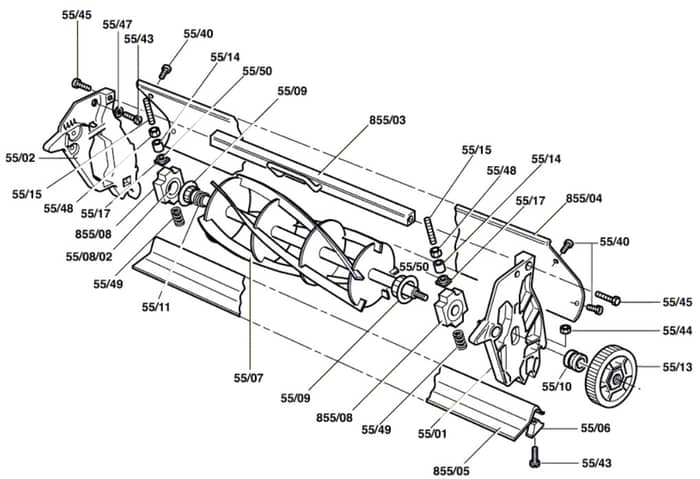

Cutter Assembly - Parts Diagram

	Part No.	Details
5501	ALF016A75001 Available to backorder	Side Plate L/H	£60.84 £50.70
5502	ALF016A75002 In stock	Side Plate R/H	£62.94 £52.45
5506	ALF016A75065 In stock	Spacer Block	£4.45 £3.71
5507	ALF016A58818 Available to backorder	Spindle	£218.04 £181.70
5509	ALF016A58854 In stock	Shielding Plate	£3.78 £3.15
5510	ALF016A58855 In stock	Cuff	£6.67 £5.56
5511	ALF016A58856 In stock	Tension Spring	£2.94 £2.45
5513	ALF016A57590 In stock	Gear	£49.64 £41.37
5514	ALF016A57669 In stock	Adjustment Piece	£3.96 £3.30
5515	ALF016A57713 In stock	Adjusting Screw	£3.67 £3.06
5517	ALF016T41057 In stock	Square Shaft	£3.07 £2.56
5543	ALF016A58229 In stock	Screw M6	£2.76 £2.30
5545	ALF016T49288 Available to backorder	Screw M6x25mm	£1.20 £1.00
5547	ALF016L35389 Available to backorder	Lock Washer	£1.52 £1.27
5548	ALF016L35457 In stock	Nut	£2.76 £2.30
5549	ALF016T47205 In stock	Spring	£2.94 £2.45
5550	ALF016T49443 In stock	Washer	£2.76 £2.30
85503	ALF016A75051 Available to backorder	Handle	£36.29 £30.24
85504	ALF016A57526 In stock	Baffle Plate	£52.40 £43.67
85505	ALF016L08780 In stock	Bottom Knife 14"	£195.40 £162.83
85508	ALF016A58853 In stock	Bearings	£15.06 £12.55
550802	ALF016A58741 In stock	Bearings	£18.16 £15.13
