Qualcast Classic Petrol 35S - F016305542 - Main Assembly

Description

Qualcast Classic Petrol 35S

Article number: F016305542

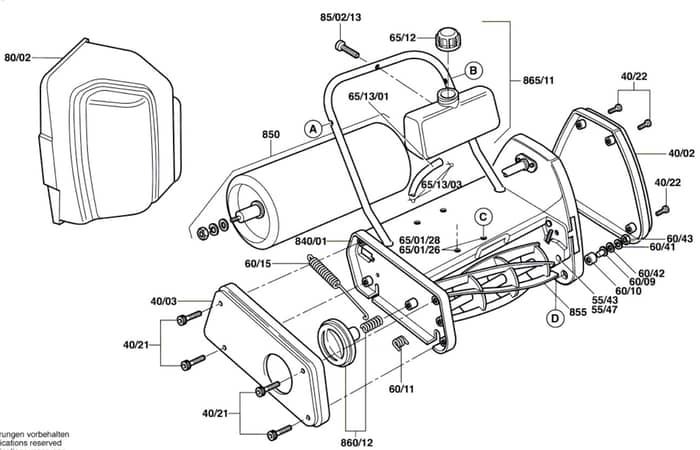

Main Assembly - Parts Diagram

	Part No.	Details
850	ALF016A75428 Available to backorder	Reel 14"	£350.04 £291.70
4002	ALF016A75899 In stock	Protective Cover L/H	£53.75 £44.79
4003	ALF016A75088 In stock	Side Cover R/H	£24.59 £20.49
4021	ALF016A58228 In stock	Screw M6	£2.76 £2.30
5543	ALF016A58229 In stock	Screw M6	£2.76 £2.30
5547	ALF016L35389 Available to backorder	Lock Washer	£1.52 £1.27
6009	ALF016A57748 Available to backorder	Pin L/H	£2.96 £2.47
6010	ALF016A57676 Available to backorder	Cap	£2.96 £2.47
6011	ALF016A57820 In stock	Spring	£3.67 £3.06
6015	ALF016A57995 In stock	Spring	£11.34 £9.45
6041	ALF016L35307 In stock	Spring Washer 5/16 Sw Se	£1.79 £1.49
6043	ALF016L35457 In stock	Nut M8	£2.76 £2.30
8002	ALF016A57572 In stock	Collection Container	Was £64.20 £53.50 Special Price £46.43 £38.69
86012	ALF016A58656 In stock	Button	£15.96 £13.30
650128	ALF016L35411 Available to backorder	Washer 8.5mm	£1.28 £1.07
651303	BQF016A57982 Available to backorder	Pipe Clamp	£1.18 £0.98
850213	ALF016L36835 Available to backorder	Screw	£1.18 £0.98
