Qualcast Classic Petrol 35S - F016305242 - Front Roller Assembly

Name: Qualcast Classic Petrol 35S - F016305242 - Front Roller Assembly
SKU: classic_petrol_35s_f016305242_front_roller_assy-group
Price: 0.98 GBP
Availability: InStock

Part No. classic_petrol_35s_f016305242_front_roller_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Qualcast Classic Petrol 35S - F016305242 - Front Roller Assembly

Description

Qualcast Classic Petrol 35S

Article number: F016305242

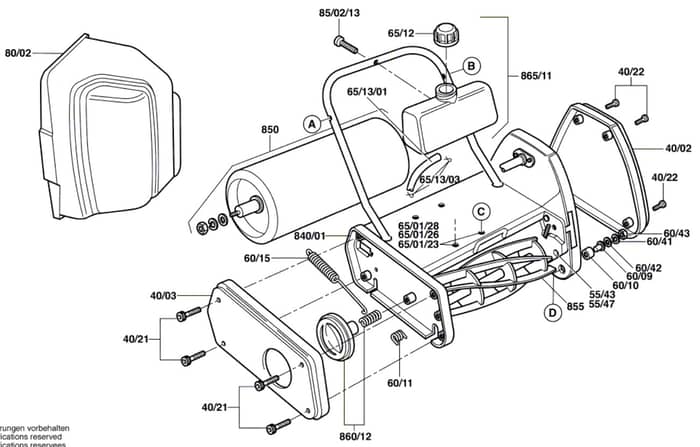

Front Roller Assembly - Parts Diagram

	Part No.	Details
850	ALF016A75428 Available to backorder	Reel 14"	£350.04 £291.70
4002	ALF016A75899 In stock	Protective Cover L/H	£53.75 £44.79
4003	ALF016A75088 In stock	Side Cover R/H	£24.59 £20.49
4020	ALF016A57756 In stock	Phillips Screw M5	£1.76 £1.47
4021	ALF016A58228 In stock	Screw M6	£2.76 £2.30
5543	ALF016A58229 In stock	Screw M6	£2.76 £2.30
5547	ALF016L35389 Available to backorder	Lock Washer	£1.52 £1.27
6007	ALF016L22149 In stock	Roller	£7.48 £6.23
6008	ALF016A57675 In stock	Bearing Bush	£3.67 £3.06
6009	ALF016A57748 Available to backorder	Pin L/H	£2.96 £2.47
6010	ALF016A57676 Available to backorder	Cap	£2.96 £2.47
6011	ALF016A57820 In stock	Spring	£3.67 £3.06
6015	ALF016A57995 In stock	Spring	£11.34 £9.45
6043	ALF016L35457 In stock	Nut M8	£2.76 £2.30
6044	ALF016W25213 Available to backorder	Hexagon Screw Was 170	£3.34 £2.78
8002	ALF016A57572 In stock	Collection Container	Was £64.20 £53.50 Special Price £46.43 £38.69
86012	ALF016A58656 In stock	Button	£15.96 £13.30
88001	ALF016A58655 Available to backorder	Support Tube	£144.12 £120.10
650122	ALF016A58093 Available to backorder	Barrel Bolt M8	£4.80 £4.00
650123	ALF016L11218 Available to backorder	Lock Nut M8	£1.52 £1.27
650124	ALF016L35307 In stock	Spring Washer	£1.79 £1.49
650128	ALF016L35411 Available to backorder	Washer	£1.28 £1.07
650132	ALF016L20252 Available to backorder	Screw 5/16 Unf x 5/8	£2.66 £2.22
650133	ALF016T40590 Available to backorder	Washer Ø8.15mm	£1.20 £1.00
651303	BQF016A57982 Available to backorder	Pipe Clamp	£1.18 £0.98
850212	ALF016A58230 Available to backorder	Pin Wrench	£4.20 £3.50
850213	ALF016L36835 Available to backorder	Screw	£1.18 £0.98
