Qualcast Classic Electric 30 - F016313042 - Cutter Assembly

Name: Qualcast Classic Electric 30 - F016313042 - Cutter Assembly
SKU: classic_electric_30_f016313042_cutter_assy-group
Price: 1.07 GBP
Availability: InStock

Part No. classic_electric_30_f016313042_cutter_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Qualcast Classic Electric 30 - F016313042 - Cutter Assembly

Description

Qualcast Classic Electric 30

Article number: F016313042

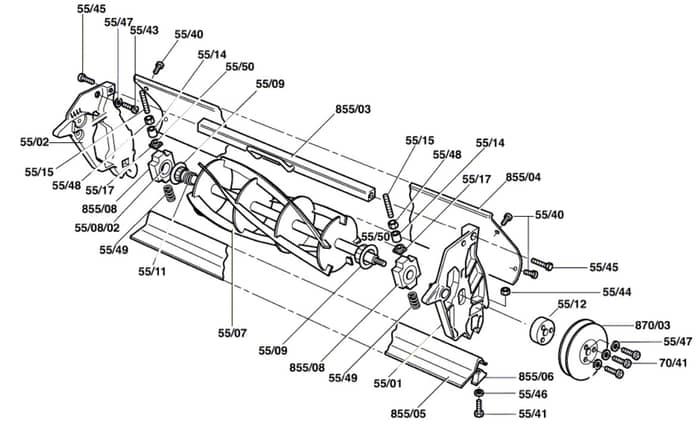

Cutter Assembly - Parts Diagram

	Part No.	Details
5501	ALF016A75001 Available to backorder	Side Plate L/H	£60.84 £50.70
5502	ALF016A75002 In stock	Side Plate R/H	£62.94 £52.45
5509	ALF016A58854 In stock	Shield	£3.78 £3.15
5511	ALF016A58856 In stock	Clamping Spring	£2.94 £2.45
5512	ALF016A58732 In stock	Coupling	£20.35 £16.96
5514	ALF016A57669 In stock	Adjusting Piece	£3.96 £3.30
5515	ALF016A57713 In stock	Adjusting Screw	£3.67 £3.06
5517	ALF016T41057 In stock	Square Shaft	£3.07 £2.56
5540	ALF016A57756 In stock	Recessed Head Screw M5	£1.76 £1.47
5543	ALF016A58229 In stock	Screw M6	£2.76 £2.30
5546	ALF016L35316 In stock	Plain Washer 8.5mm	£3.52 £2.93
5547	ALF016L35389 Available to backorder	Locking Washer	£1.52 £1.27
5548	ALF016L35457 In stock	Nut M8	£2.76 £2.30
5549	ALF016T47205 In stock	Spring	£2.94 £2.45
5550	ALF016A57892 Available to backorder	Housing	£1.28 £1.07
85504	ALF016A58390 In stock	Deflector Plate	£52.98 £44.15
85505	ALF016L08779 In stock	Lower Blade	£101.68 £84.73
85506	BQF016L23147 Available to backorder	Washer	£1.31 £1.09
85508	ALF016A58853 In stock	Bearing	£15.06 £12.55
87003	ALF016102161 Available to backorder	Pulley	£56.35 £46.96
550802	ALF016A58741 In stock	Bearing	£18.16 £15.13
