PWR HP 410 PRMA - 2006 - 297430047/BQ - Mountfield Rotary Mower Main Assembly Diagram

Description

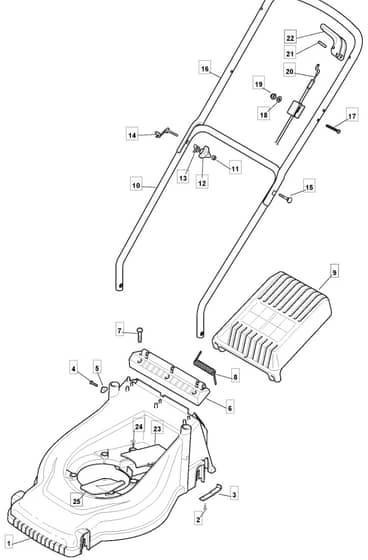

Mountfield PWR HP 410 PRMA Parts Diagram

Product Name - PWR HP 410 PRMA

Model Year - 2006

Model Type - EP 434

Art.N - 297430047/BQ

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
4	MO112728450/0 In stock	Screw	£1.55 £1.29
5	MO322545135/0 Available to backorder	Plate	£1.97 £1.64
6	MO322785165/0 Available to backorder	Stone Guard Support	£5.60 £4.67
8	MO122450430/0 Available to backorder	Spring	£4.78 £3.98
9	MO322600079/1 Available to backorder	Stone-Guard	£13.93 £11.61
10	MO381006609/0 Available to backorder	Hanlde Lower Part Ep434	£26.66 £22.22
11	MO112293200/0 In stock	Nut	£1.55 £1.29
12	MO122399900/0 In stock	Black Knob	£1.55 £1.29
13	MO122680006/1 In stock	Washer	£1.75 £1.46
14	MO181003801/1 In stock	Guide Spring	£3.38 £2.82
15	MO112819201/0 In stock	Screw	£2.81 £2.34
17	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
18	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
19	MO112292100/0 Available to backorder	Nut	£1.40 £1.17

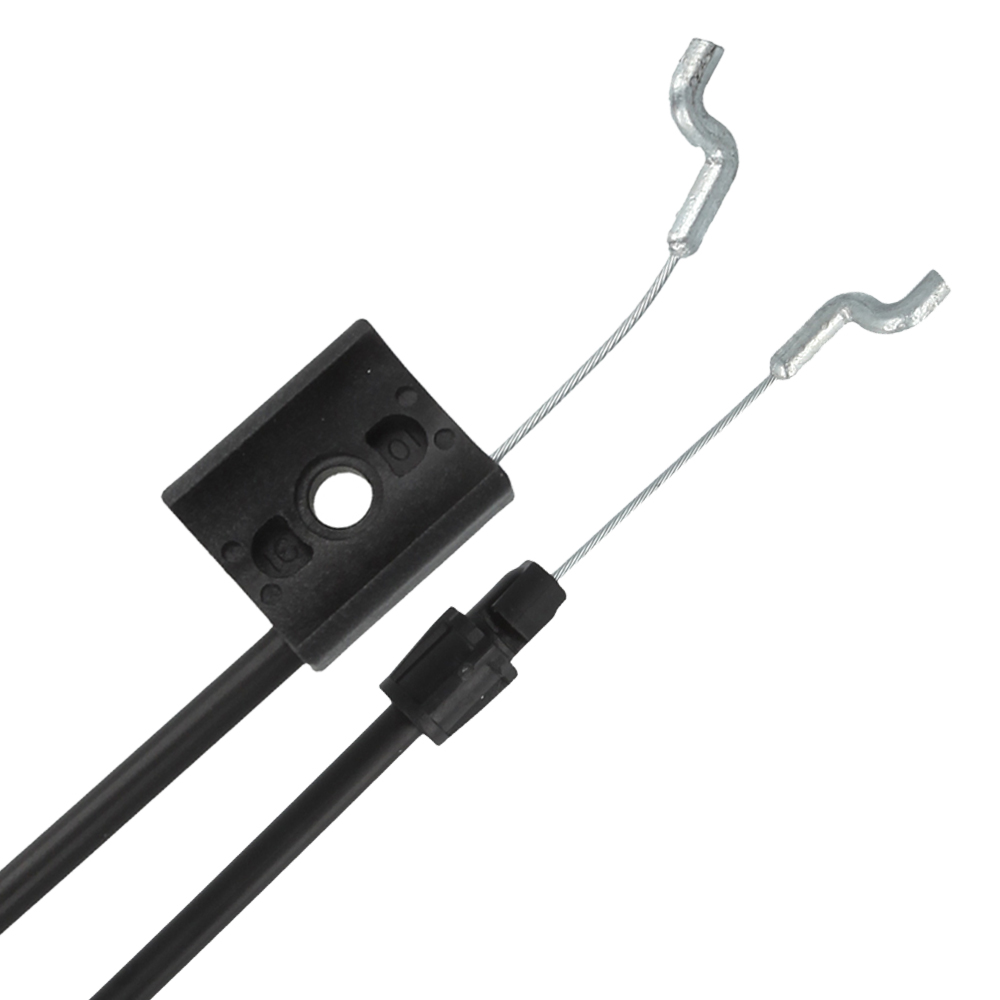

20	MO181000614/0 Available to backorder	Cable. Thread Engine Brake ST. Engine	£22.28 £18.57
21	MO112645710/0 Available to backorder	Elastic Pin	£2.12 £1.77
22	MO322321700/1 In stock	Lever	£3.38 £2.82
23	MO122060171/0 Available to backorder	Belt Protection	£3.10 £2.58
24	MO112728686/0 In stock	Screw	£1.55 £1.29
25	MO322484070/1 Available to backorder	Muffler Guard Plate	£2.26 £1.88
