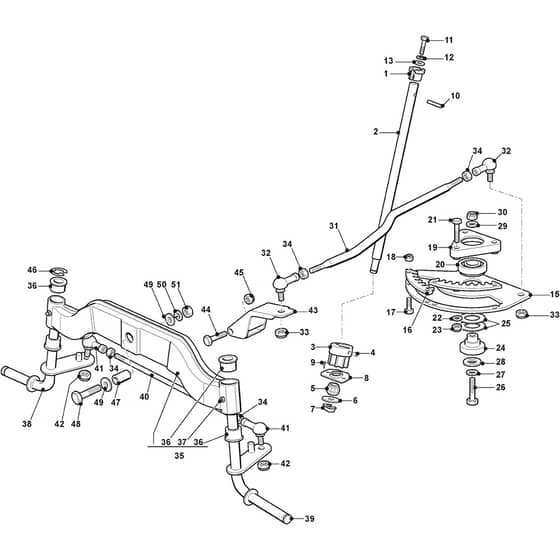

PTX 240 HD - 2025 - 2T1310473/C25 - Castel Garden Ride On Mower Steering Diagram

Name: PTX 240 HD - 2025 - 2T1310473/C25 - Castel Garden Ride On Mower Steering Diagram
SKU: ptx_240_hd_2t1310473_c25_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PTX 240 HD - 2025 - 2T1310473/C25 - Castel Garden Ride On Mower Steering Diagram

Description

Castel Garden PTX 240 HD Parts Diagram

Product Name - PTX 240 HD

Model Year - 2025

Model Type - TCX 122 Hydro

Art.N - 2T1310473/C25

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520010/0 Available to backorder	Steering Column	£30.97 £25.81
3	MO125570004/0 In stock	Pinion	£10.98 £9.15
4	MO112714300/0 Available to backorder	Grub Screw	£1.55 £1.29
5	MO325743000/0 In stock	Joint	£2.68 £2.23
6	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
7	MO112436030/0 In stock	Plate	£1.82 £1.52
8	MO325785213/1 Available to backorder	Support	£2.40 £2.00
9	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
10	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
11	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
12	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
13	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
15	MO325735523/2 Available to backorder	Steering Shaft	£40.82 £34.02
16	MO325150000/0 Available to backorder	Steering Quadrant	£7.02 £5.85
17	MO112791213/1 In stock	Screw	£1.55 £1.29
18	MO112154510/0 In stock	Nut	£1.55 £1.29
19	MO325774453/0 Available to backorder	Clamp	£24.22 £20.18
20	MO119216047/0 In stock	Bearing	£15.78 £13.15
21	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
22	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO125510120/0 Available to backorder	Support	£10.84 £9.03
25	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
26	MO112692395/2 In stock	Screw	£3.24 £2.70
27	MO112523080/0 In stock	Washer	£1.55 £1.29
51	MO112295800/0 Available to backorder	Hexagon Nut	£1.82 £1.52
