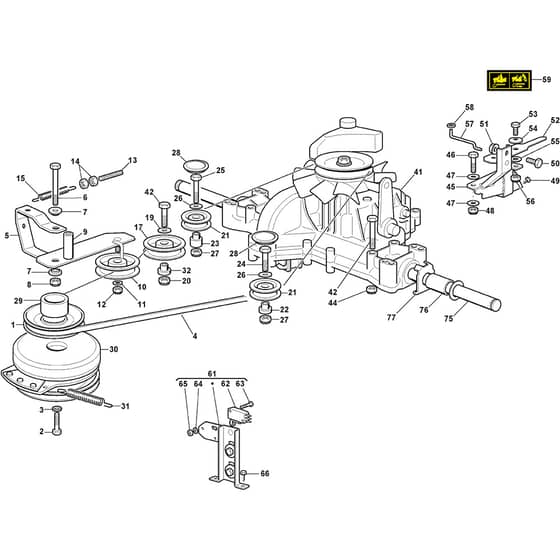

PTX 230 HD - 2022-2023 - 2T1310473/C22 - Castel Garden Ride On Mower TT Transmission Diagram

Description

Castel Garden PTX 230 HD Parts Diagram

Product Name - PTX 230 HD

Model Year - 2022-2023

Model Type - TCX 122 Hydro

Art.N - 2T1310473/C22

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
21	MO325601570/1 Available to backorder	Pulley	£24.36 £20.30
22	MO125160030/2 Available to backorder	Left Spacer	£6.47 £5.39
23	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
25	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
26	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
28	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
30	MO118399062/1 Available to backorder	Electromagnetic Clutch From S.N 22JA1RON000559	£341.58 £284.65
31	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
32	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
45	MO382785109/1 Available to backorder	Support	£19.99 £16.66
46	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
49	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
50	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
51	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
52	MO325318157/0 Available to backorder	Lever	£5.35 £4.46
53	MO112793102/0 In stock	Screw	£1.55 £1.29
54	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
55	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
56	MO112155000/0 In stock	Nut	£1.55 £1.29
57	MO125033033/1 Available to backorder	Rod	£2.12 £1.77
58	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
59	MO114370818/0 Available to backorder	Transmission Unlock Label	£2.26 £1.88
61	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
62	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
63	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
64	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
65	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
66	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
