PTX 170 HD - 2013-2020 - 2T1730273/Y13 - Castel Garden Ride On Mower Seat Diagram

Name: PTX 170 HD - 2013-2020 - 2T1730273/Y13 - Castel Garden Ride On Mower Seat Diagram
SKU: ptx_170_hd_2t1730273_y13_seat-group
Price: 1.29 GBP
Availability: InStock

Part No. ptx_170_hd_2t1730273_y13_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PTX 170 HD - 2013-2020 - 2T1730273/Y13 - Castel Garden Ride On Mower Seat Diagram

Description

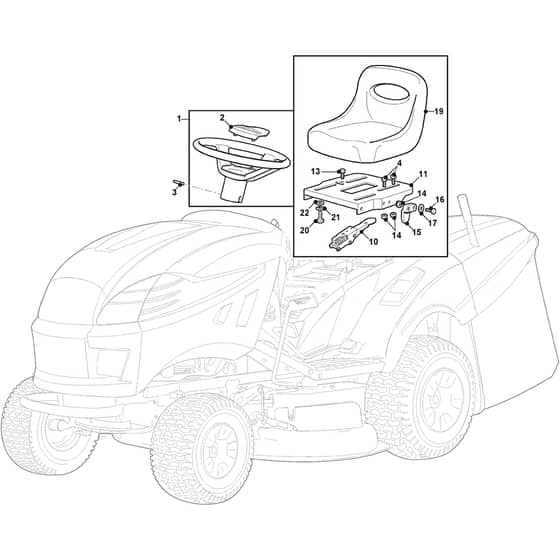

Castel Garden PTX 170 HD Parts Diagram

Product Name - PTX 170 HD

Model Year - 2013-2020

Model Type - NJX 102 Hydro

Art.N - 2T1730273/Y13

Engine Model - B&S 4165 AVS

	Part No.	Details
1	MO125961217/1 Available to backorder	Steering Wheel	£98.56 £82.13
2	MO325580505/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
10	MO382318300/1 Available to backorder	Opc Spring And Lever Assy	£35.20 £29.33
11	MO325547033/2 Available to backorder	Seat Plate	£39.42 £32.85
13	MO112735661/0 Available to backorder	Screw	£1.63 £1.36
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
20	MO112793101/0 In stock	Screw	£1.55 £1.29
21	MO112583500/0 In stock	Grower	£1.55 £1.29
22	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
