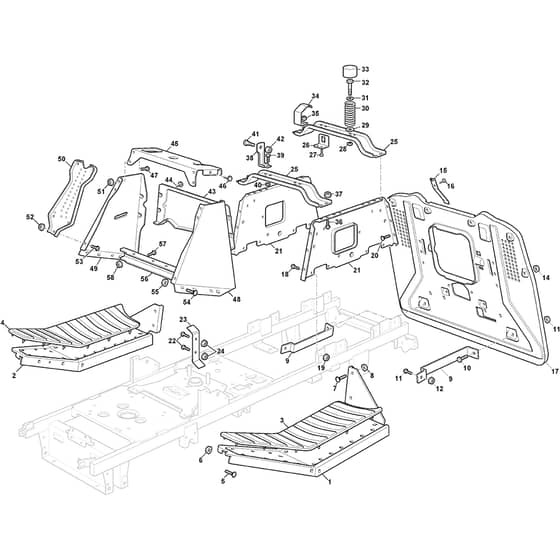

PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Frame Diagram

Name: PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Frame Diagram
SKU: ptx_165_hd_2t1730473_c21_frame-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Frame Diagram

Description

Castel Garden PTX 165 HD Parts Diagram

Product Name - PTX 165 HD

Model Year - 2021-2022

Model Type - NJX 102 Hydro

Art.N - 2T1730473/C21

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382510083/1 Available to backorder	Left Footboard Support	£76.72 £63.93
2	MO382510081/1 Available to backorder	Right Footboard Support	£76.72 £63.93
3	MO325110327/0 Available to backorder	Left Footboard Cover	£18.16 £15.13
4	MO325110326/0 Available to backorder	Right Footboard Cover	£19.85 £16.54
15	MO125430276/0 Available to backorder	Spring	£5.06 £4.22
17	MO382547041/1 Available to backorder	Plate	£102.76 £85.63
21	MO325785249/0 Available to backorder	Seat Support	£33.79 £28.16
22	MO112793102/0 In stock	Screw	£1.55 £1.29
23	MO325785499/0 Available to backorder	Support	£6.05 £5.04
25	MO382785309/0 Available to backorder	Seat Support	£12.32 £10.27
26	MO325755043/0 Available to backorder	Bracket	£2.26 £1.88
27	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
28	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
29	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
30	MO125430257/1 Available to backorder	Spring	£12.53 £10.44
31	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
32	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
33	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
34	MO325430253/0 Available to backorder	Micro Seat Protect Spring	£5.21 £4.34
35	MO112154330/0 In stock	Nut	£1.55 £1.29
38	MO325755039/0 Available to backorder	Bracket	£7.73 £6.44
39	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
41	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
42	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
43	MO382785151/2 Available to backorder	Rear Dashboard Support	£16.82 £14.02
45	MO325785255/0 Available to backorder	Central Dashboard Support	£8.23 £6.86
46	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
48	MO325785243/1 Available to backorder	Left Dashboard Support	£29.56 £24.63
49	MO325785245/0 Available to backorder	Right Dashboard Support	£22.25 £18.54
50	MO382785153/2 Available to backorder	Front Dashboard Support	£15.28 £12.73
53	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
54	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
55	MO112293201/0 In stock	Nut	£1.69 £1.41
56	MO325785241/0 Available to backorder	Support	£7.13 £5.94
57	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
58	MO112292102/0 In stock	Flanged Hexagonal Nut M6	£1.69 £1.41
