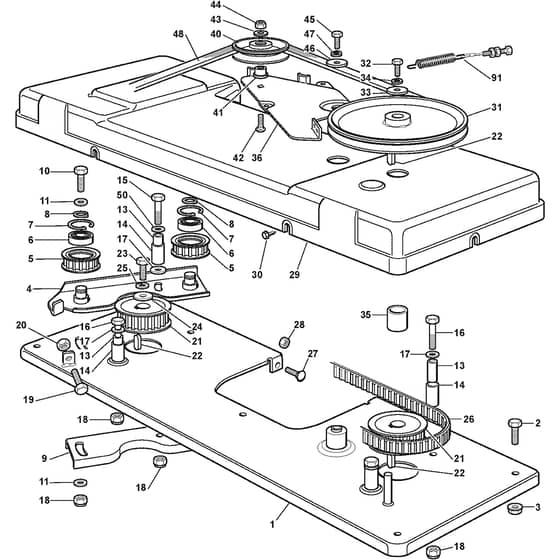

PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Blade Engagement Diagram

Name: PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Blade Engagement Diagram
SKU: ptx_165_hd_2t1730473_c21_blade_engagement-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PTX 165 HD - 2021-2022 - 2T1730473/C21 - Castel Garden Ride On Mower Blade Engagement Diagram

Description

Castel Garden PTX 165 HD Parts Diagram

Product Name - PTX 165 HD

Model Year - 2021-2022

Model Type - NJX 102 Hydro

Art.N - 2T1730473/C21

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547029/3 Available to backorder	Blade Transmission Plate	£115.43 £96.19
2	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO382785084/3 Available to backorder	Support	£32.38 £26.98
5	MO125601559/1 In stock	Toothed Pulley	£40.82 £34.02
6	MO119216048/0 In stock	Bearing	£18.31 £15.26
7	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
8	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
9	MO325650037/1 Available to backorder	Pulley Stiffening	£8.45 £7.04
13	MO125160003/2 Available to backorder	Spacer	£1.82 £1.52
14	MO125038000/0 Available to backorder	Bushing	£1.55 £1.29
15	MO112691700/0 In stock	Screw	£1.82 £1.52
16	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
19	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO125601560/0 Available to backorder	Pulley	£54.90 £45.75
22	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
26	MO135065605/0LC Available to backorder	Belt	£91.58 £76.32
27	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
28	MO112292102/0 In stock	Nut	£1.69 £1.41
29	MO125060100/3 Available to backorder	Protection	£21.67 £18.06
30	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
31	MO125601550/0 Available to backorder	Pulley	£43.49 £36.24
33	MO125670007/0 In stock	Washer	£1.97 £1.64
35	MO125160002/1 Available to backorder	Spacer	£4.37 £3.64
36	MO325318115/2 Available to backorder	Brake Lever	£24.84 £20.70
40	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
41	MO125160079/0 Available to backorder	Spacer	£4.08 £3.40
42	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112793102/0 In stock	Screw	£1.55 £1.29
46	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
47	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
48	MO135062813/1 In stock	Belt	£39.05 £32.54
50	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
91	MO182004608/0 Available to backorder	Blade Engage Cable	£23.23 £19.36
