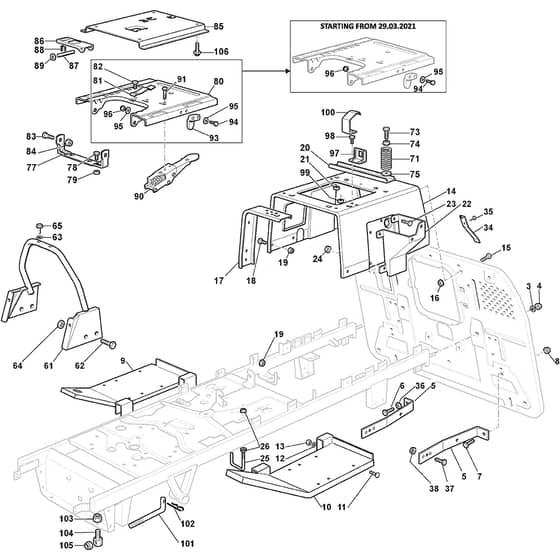

Castel Garden PTX 160 HD Parts Diagram

Product Name - PTX 160 HD

Model Year - 2015-2019

Model Type - TCX 102 Hydro

Art.N - 2T0930473/15

Engine Model - Castelgarden 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
4	MO9739-1031-22 In stock	Nut	£1.97 £1.64
5	MO325774273/2 Available to backorder	Stiffening	£8.87 £7.39
6	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
9	MO382510041/2 Available to backorder	Right Footboard Support	£80.84 £67.37
10	MO382510043/2 Available to backorder	Left Footboard Support	£80.84 £67.37
11	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
17	MO325650065/1 Available to backorder	Pulley Stiffening	£9.28 £7.73
20	MO325650067/1 Available to backorder	Pulley Stiffening	£5.92 £4.93
21	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
22	MO325785137/1 Available to backorder	Support	£35.20 £29.33
23	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
25	MO125580019/1 Available to backorder	Belt Guide (Hydro)	£3.94 £3.28
34	MO125430238/1 Available to backorder	Spring	£4.08 £3.40
37	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
61	MO382650045/0 Available to backorder	Central Stiffening Support Frame	£40.82 £34.02
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
64	MO112292102/0 In stock	Nut	£1.69 £1.41
65	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
71	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
73	MO125943001/1 Available to backorder	Screw	£1.97 £1.64
74	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
75	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
77	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
78	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
79	MO112293201/0 In stock	Nut	£1.69 £1.41
80	MO382785301/0 Available to backorder	Fixed Seat Support	£43.64 £36.37
81	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
82	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
83	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
84	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
85	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
86	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
87	MO125510000/0 Available to backorder	Pin	£1.40 £1.17
88	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
89	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
90	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
91	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
93	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
94	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
95	MO112523020/0 In stock	Washer From S.N 21DA1RON000001	£1.55 £1.29
95	MO112521320/0 Available to backorder	Washer To S.N 21DA1RON000000	£1.55 £1.29
96	MO112154330/0 In stock	Nut	£1.55 £1.29
97	MO325755025/3 Available to backorder	Bracket	£5.76 £4.80
98	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
99	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
100	MO325430255/0 Available to backorder	Spring	£3.94 £3.28
101	MO125510119/0 Available to backorder	Tie Rod From 01.06.2020 only on steel forecarriage equalizer assy	£13.31 £11.09
102	MO124487997/0 Available to backorder	Cotter Pin From 01.06.2020 only on steel forecarriage equalizer assy	£1.55 £1.29
104	MO125510168/0 Available to backorder	Pin From 01.06.2020 only on steel forecarriage equalizer assy From S.N 21DA1RON000001	£4.50 £3.75
104	MO125510040/2 Available to backorder	Pin From 01.06.2020 only on steel forecarriage equalizer assy To S.N 21DA1RON000000	£5.76 £4.80
105	MO112155000/0 In stock	Nut From 01.06.2020 only on steel forecarriage equalizer assy	£1.55 £1.29
106	MO9959-0820-16 In stock	Screw M6Sf M8 X 20 Tl	£1.55 £1.29
