Toro Proline Mid-Size 91cm - 44410TE (408000000 - 412999999) Operator Control

Name: Toro Proline Mid-Size 91cm - 44410TE (408000000 - 412999999) Operator Control
SKU: proline_mid_size_91cm_44410te_48412999999_operator_control-group
Price: 0.46 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (408000000 - 412999999) Operator Control

Description

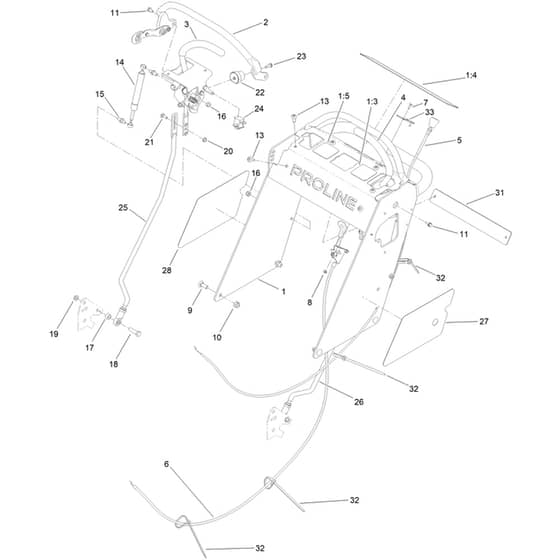

Toro Proline Mid-Size 91cm - 44410TE (408000000 - 412999999) Operator Control Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-2850 Available to backorder	Tower Assembly	£542.40 £452.00
1	HA138-8816 Available to backorder	[1.3] Decal - Left Opc Control	£9.64 £8.03
1	HA138-8818 Available to backorder	[1.4] Decal - Control Warning	£17.24 £14.37
1	HA139-2874 Available to backorder	[1.5] Decal - Right Opc Control	£9.64 £8.03
3	HA139-1532 Available to backorder	Right Hand Control Handle Assembly	£322.80 £269.00
4	HA139-1487 Available to backorder	Left Hand Control Handle Assembly	£322.80 £269.00
5	HA126-2107 Available to backorder	Cable. Choke	£49.04 £40.87
6	HA109-3958 Available to backorder	Toro Throttle Control	£45.44 £37.87
7	HA3229-34 Available to backorder	Carriage Screw	£2.38 £1.98
8	HA3296-2 Available to backorder	Lock Nut	£2.26 £1.88
9	HA3231-22 Available to backorder	Carriage Screw	£1.34 £1.12
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
11	HA119-1065 Available to backorder	Screw-Lock.Hf[1.4-20 X 1.2.Patch.Gr5.Bz]	£1.46 £1.22
13	HA138-9753 Available to backorder	Screw	£0.55 £0.46
14	HA139-1523 Available to backorder	Damper	£75.62 £63.02
15	HA103-5752 Available to backorder	Stud-Ball	£8.00 £6.67
16	HA3296-72 Available to backorder	Lock Nut	£2.02 £1.68
17	HA121-2608 Available to backorder	Spacer	£5.06 £4.22
18	HA323-29 Available to backorder	Hex Head (Hh) Screw	£0.79 £0.66
19	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.46 £1.22
20	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
21	HA3229-1 Available to backorder	Carriage Bolt	£4.06 £3.38
22	HA126-1499 Available to backorder	Cam	£9.70 £8.08
23	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
24	HA82-2190 Available to backorder	Bail Switch	£16.74 £13.95
25	HA139-4032 Available to backorder	Right Hand Welded Control Rod Assembly	£117.44 £97.87
26	HA139-4037 Available to backorder	Control Rod Asm. Lh	£117.44 £97.87
27	HA140-4253 Available to backorder	Decal - Left Hand (Lh) Proline	£21.94 £18.28
28	HA140-4254 Available to backorder	Right Hand Proline Decal	£21.94 £18.28
31	HA140-4251-03 Available to backorder	Cover Plate	£15.54 £12.95
32	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
33	HA140-5486-03 Available to backorder	Plate-Speed Limiter	£6.58 £5.48
