Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) Transmission

Name: Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) Transmission
SKU: proline_mid_size_91cm_44410te_4654661836_transmission-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) Transmission

Description

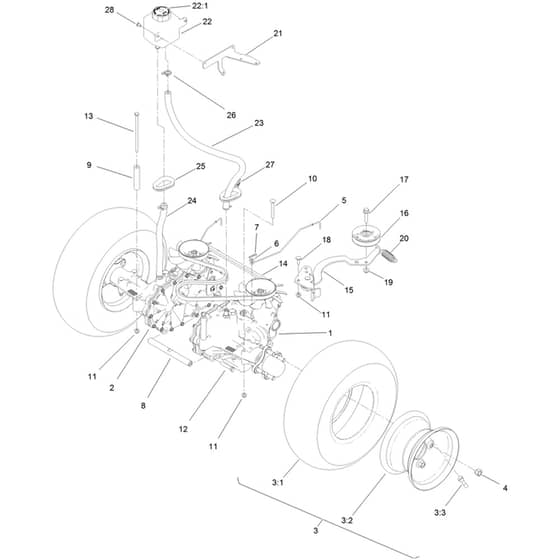

Toro Proline Mid-Size 91cm - 44410TE (406500000 - 406610836) Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA138-4869 Available to backorder	Left Hand (Lh) Transmission - Zt-2800	£1,560.00 £1,300.00
2	HA138-4870 Available to backorder	Right Hand Transmission (Zt-2800)	£1,560.00 £1,300.00
3	HA138-5878 Available to backorder	Drive Wheel And Tire Assembly	£259.44 £216.20
3	HA119-3421 Available to backorder	[3.1] Tire - 4 Ply 18X6-8	£259.44 £216.20
3	HA139-7877 Available to backorder	[3.2] Commercial Walk Behind Mower Rim	£101.88 £84.90
3	HA5108 Available to backorder	[3.3] Valve Stem	£10.44 £8.70
4	HA242-50 Available to backorder	Lug Nut	£1.94 £1.62
5	HA139-5592 Available to backorder	Bypass Rod	£14.34 £11.95
6	HA3256-22 Available to backorder	Flat Washer	£0.62 £0.52
7	HA1-806003 Available to backorder	Cotter Pin	£1.66 £1.38
8	HA138-1028 Available to backorder	Hydro Cross Shaft	£94.92 £79.10
9	HA138-5803 Available to backorder	Transmission Spacer	£25.72 £21.43
10	HA3230-9 Available to backorder	Screw-Carr [.312-18X2.750.Gr5.Yz]	£1.12 £0.93
11	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
12	HA94-7972 Available to backorder	Hex Head (Hh) Loctite Screw	£4.06 £3.38
13	HA1-800286 Available to backorder	Hex Head (Hh) Screw	£3.46 £2.88
14	HA138-6829 Available to backorder	Transmission V-Belt For 36 Inch Commercial Walk Behind Mower	£46.64 £38.87
15	HA138-1027 Available to backorder	Idler Arm Pivot Assembly	£122.04 £101.70
16	HA92-7101 Available to backorder	Flat Idler Pulley	£46.64 £38.87
17	HA3234-19 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
18	HA3230-10 Available to backorder	Carriage Bolt	£0.82 £0.68
19	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
20	HA138-6814 Available to backorder	Extension Spring	£8.96 £7.47
21	HA139-7914-03 Available to backorder	Bracket Assembly With Black	£40.20 £33.50
22	HA109-2250 Available to backorder	Tank-Hyd	£75.36 £62.80
22	HA109-3320 Available to backorder	[22.1] Cap-Reservoir. Hyd	£32.30 £26.92
24	HA121-2952 Available to backorder	Overflow Hose	£5.84 £4.87
25	HA240-12 Available to backorder	Rubber Grommet	£47.32 £39.43
26	HA117-1193 Available to backorder	Hose Clamp	£1.54 £1.28
27	HA32180-030 Available to backorder	Tie Clip	£6.94 £5.78
28	HA137-4795 Available to backorder	Screw-Hwh [Taptite 1.4-20 X .38.Yz]	£0.34 £0.28
